category:
Electric Motors
height:
6.02
length:
14.24
manufacturer:
Century
mpn:
D2826
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15.6
width:
6.04
Product Overview

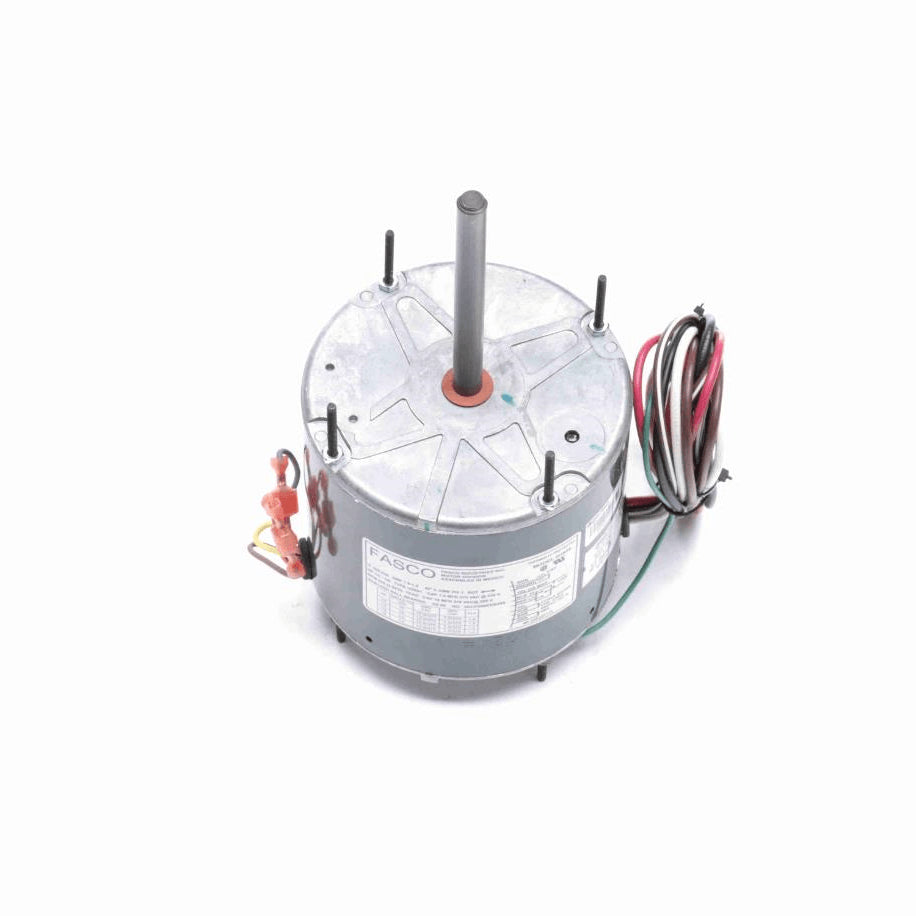

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 37" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current1.90/ 1.20 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.60 LB
Country Of originMexico
Output HP1/3-1/6 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.57 in
Shaft Diameter0.500 in
Shaft Extension5.00 in
CEN
