category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
D2852
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
24
width:
6.38

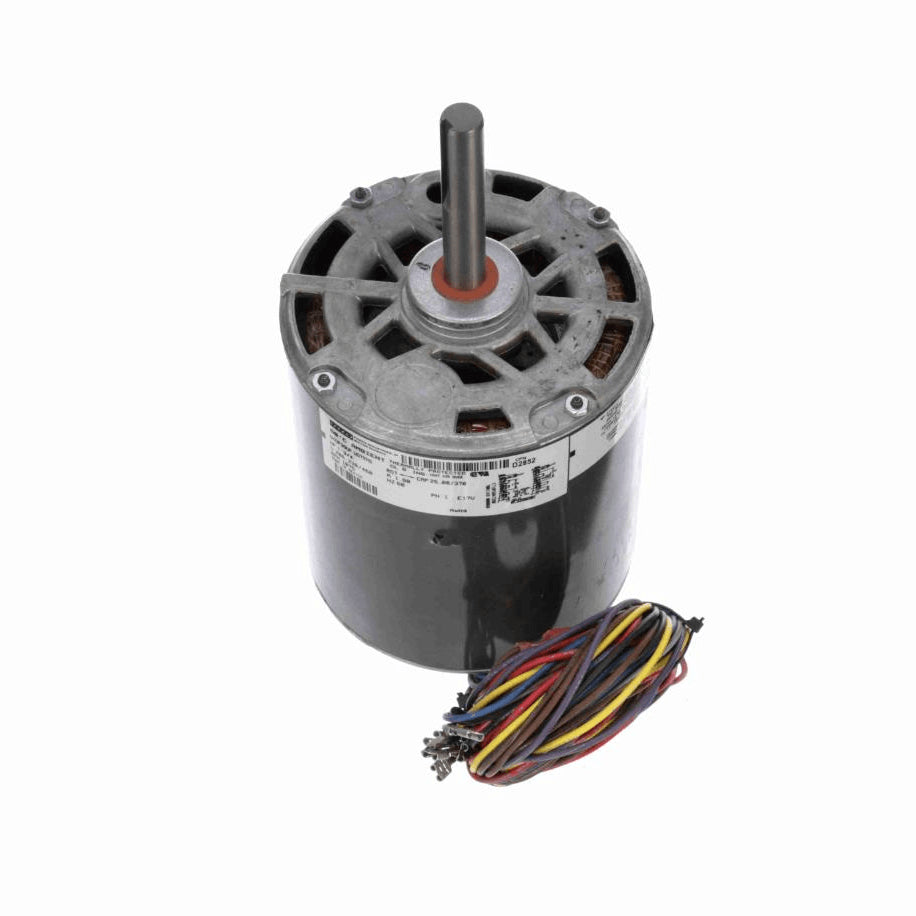

Product Overview
- Condenser Fan motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Shell Enclosed, Open Shaft End and Lead End End-Frame
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Keyway
- 97" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.90 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight24.00 LB
Country Of originMexico
Output HP1-3/4 Hp
Output KW0.75 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise/Clockwise
MountingLug
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length6.07 in
Shaft Diameter0.620 in
Shaft Extension3.25 in
CEN
