category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D742
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
5.63
Product Overview

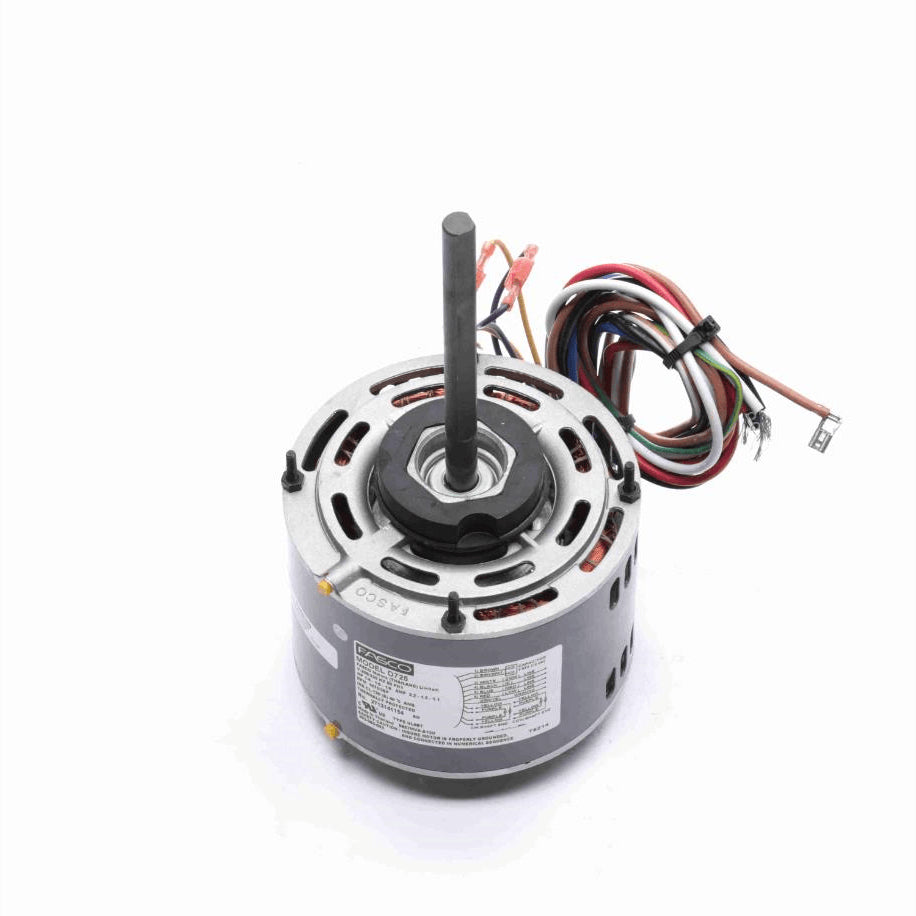

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shell on Shaft End and Shaft End End-Frame, Enclosed Shell on Lead End and Lead End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.98 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originThailand
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Drip Proof
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.02 in
Shaft Diameter0.500 in
Shaft Extension6 in
CEN
Starting MethodAcross The Line
