category:
Electric Motors
height:
6.02
length:
14.06
manufacturer:
Century
mpn:
D797
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.04
Product Overview

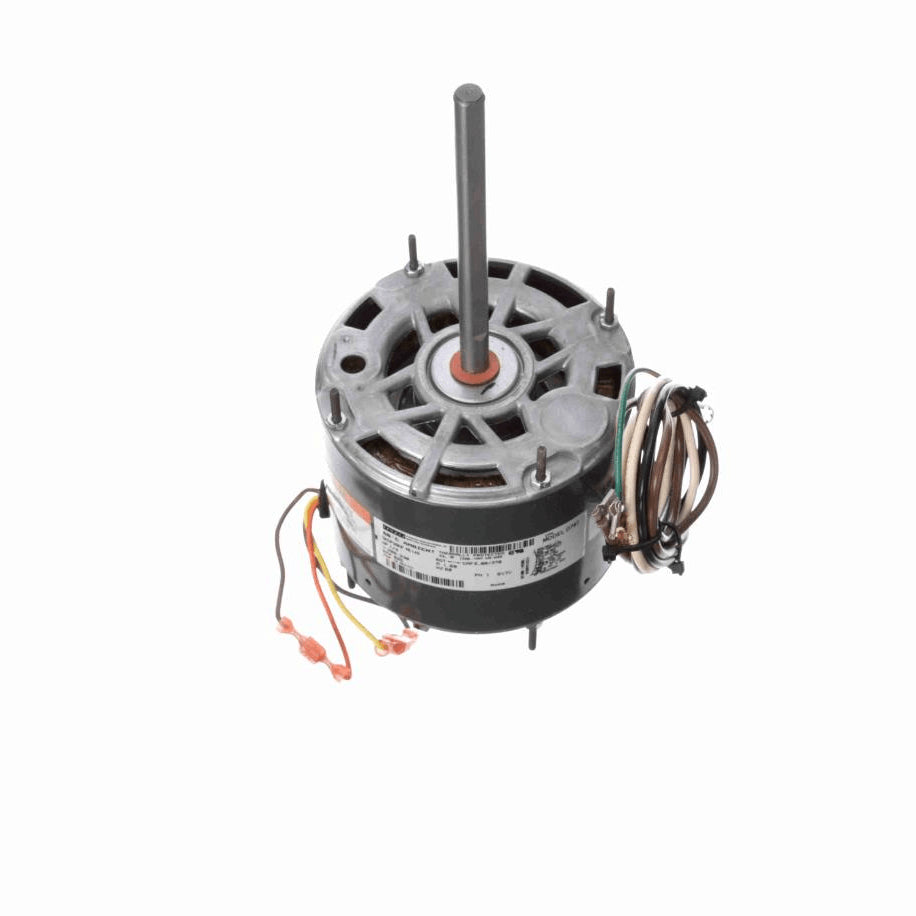

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Shell and Lead End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current1.60 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise/Clockwise
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.82 in
Shaft Diameter0.500 in
Shaft Extension6.42 in
CEN
