category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
D929
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18.4
width:
6.38
Product Overview

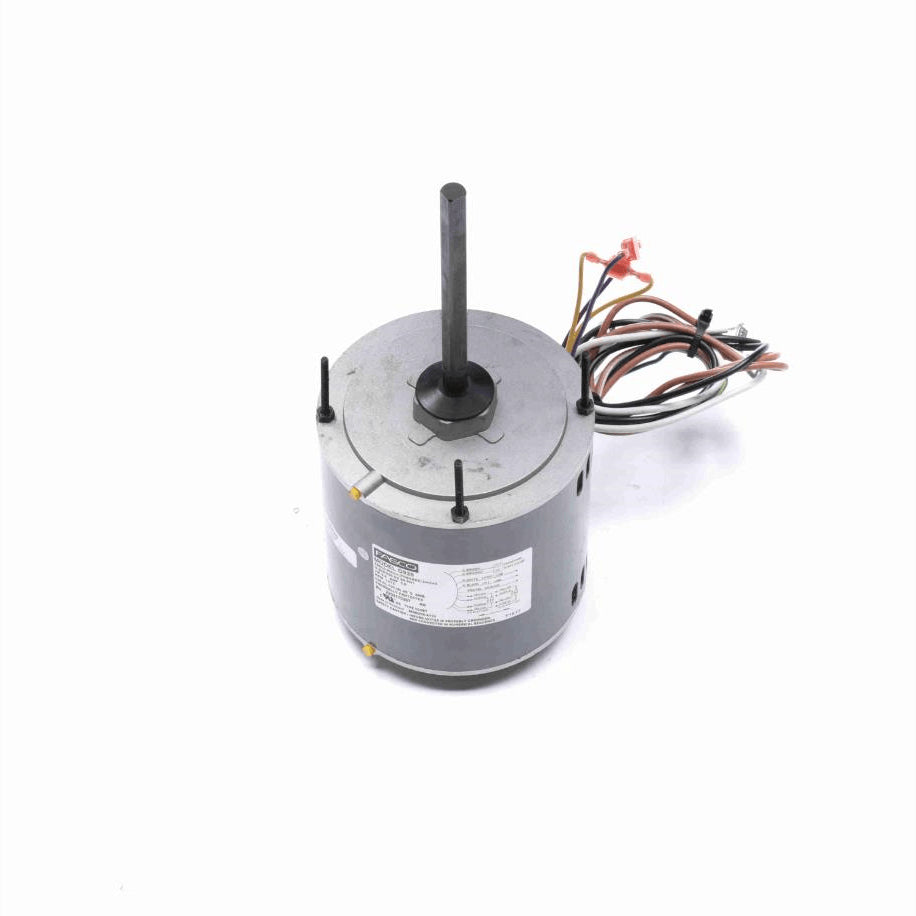

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-440 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shell and Lead End End-Frame, Enclosed Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current4.94 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.40 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension5.75 in
CEN
