category:
Blowers
height:
3.31
length:
12
manufacturer:
Century
mpn:
D1184
subcategory:
Draft Inducer Blowers
weight:
5
width:
5.13
Product Description

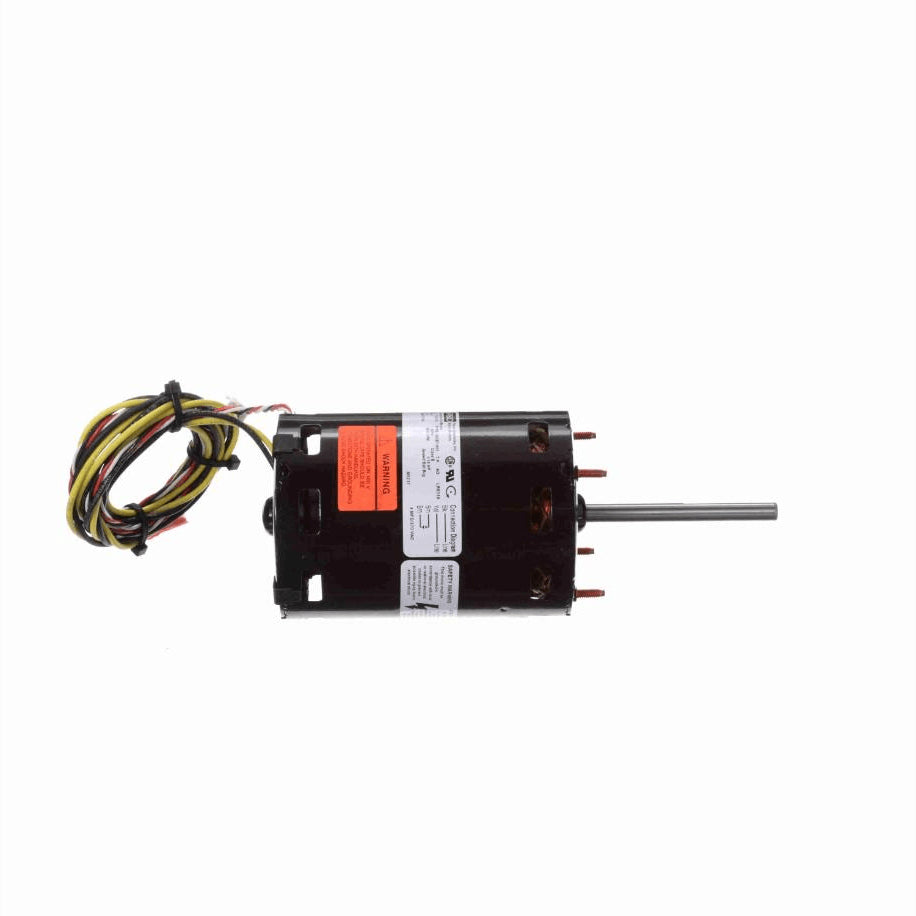

Century - D1184
- Draft Inducer Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Double Flat
- 56" Leads with Spade Terminals
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3450 rpm
Current.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/16 Hp
Output KW0.04 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeDouble Flat
Frame Length4.51 in
Shaft Diameter0.312 in
Shaft Extension3.35 in
CEN
Starting MethodAcross The Line
