category:
Blowers
height:
3.38
length:
11
manufacturer:
Century
mpn:
D1194
subcategory:
Draft Inducer Blowers
weight:
4
width:
3.38
Product Description

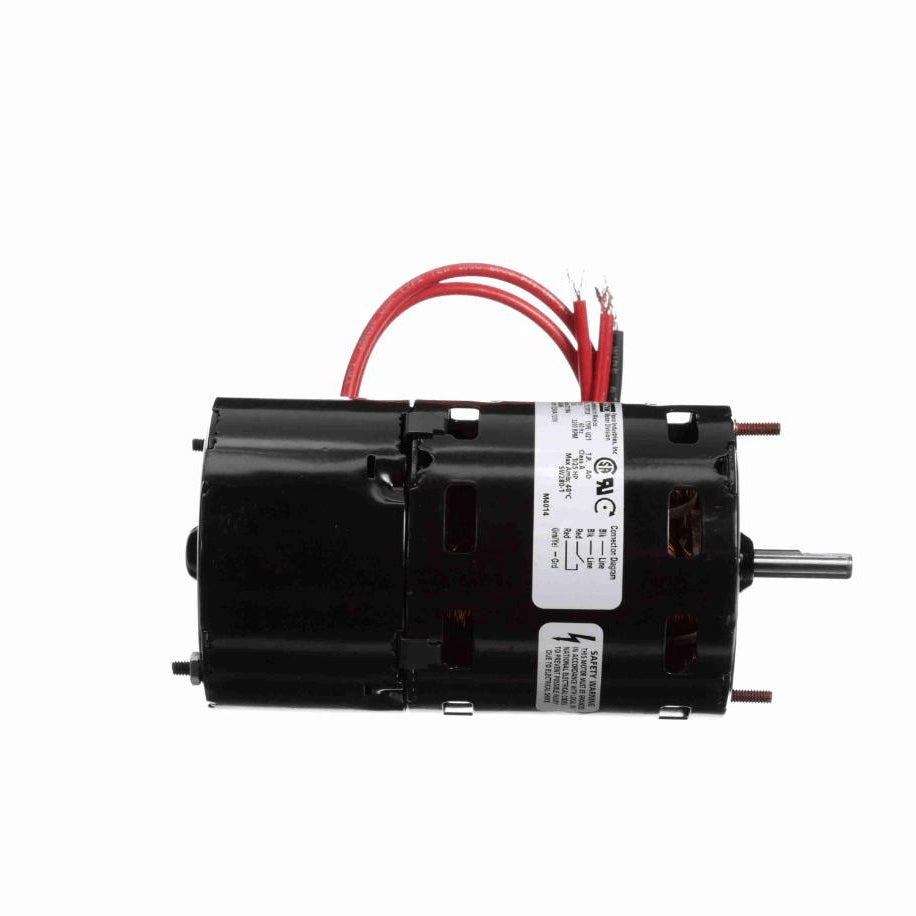

Century - D1194
- Draft Inducer Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 6" Leads, 16" Switch Leads
- Extended Studs Shaft End,
Additional Information
Thermal ProtectionThermally Protected
Speed3200 rpm
Current1.75 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight4.00 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.18 in
Shaft Diameter0.312 in
Shaft Extension1.25 in
CEN
Starting MethodAcross The Line
