Product details
category: Blowers
height: 4.25
length: 9.5
manufacturer: Century
mpn: D454
subcategory: Draft Inducer Blowers
weight: 4
width: 4.25
Product Overview

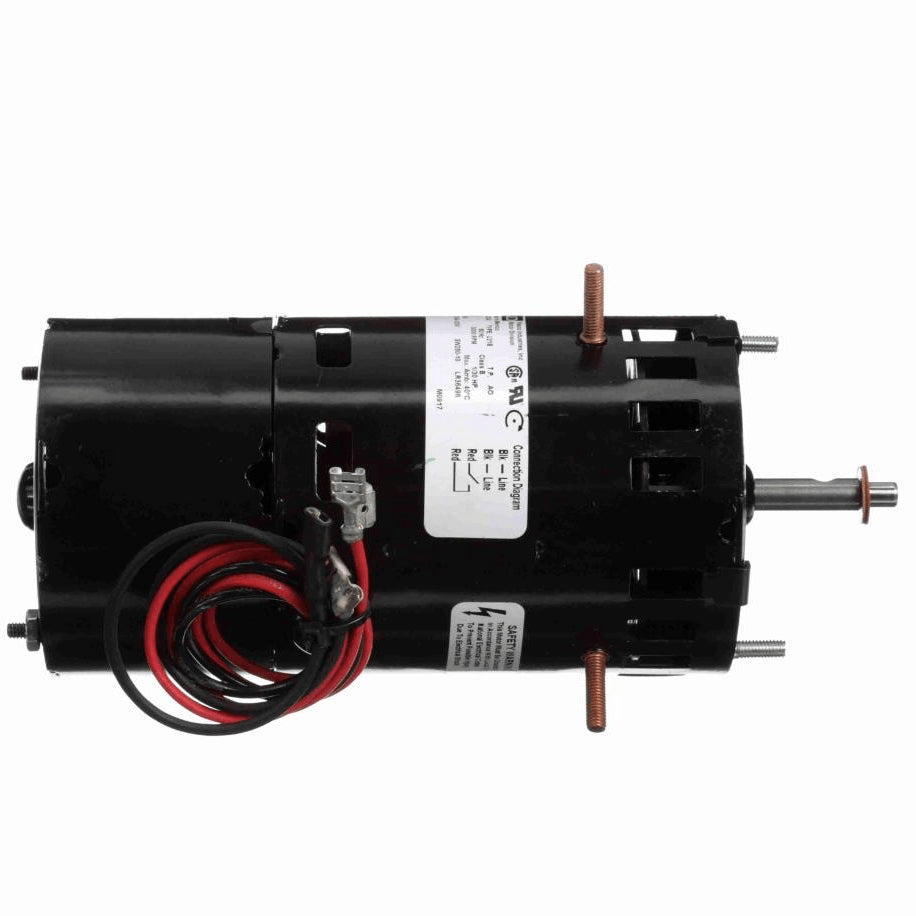

- Draft Inducer Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 10" Leads with Quick Connect Terminals, 10" Switch Leads with Quick Connect Terminals
- Extended Studs Shaft End, Shell Extended Studs 120 Degrees Apart
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.00 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.01 in
Shaft Diameter0.250 in
Shaft Extension1.50 in
CEN
Starting MethodAcross The Line
Efficiency25 %
