category:
Blowers
height:
9
length:
6.5
manufacturer:
Century
mpn:
D1196
subcategory:
Draft Inducer Blowers
weight:
3.4
width:
5.13
Product Description

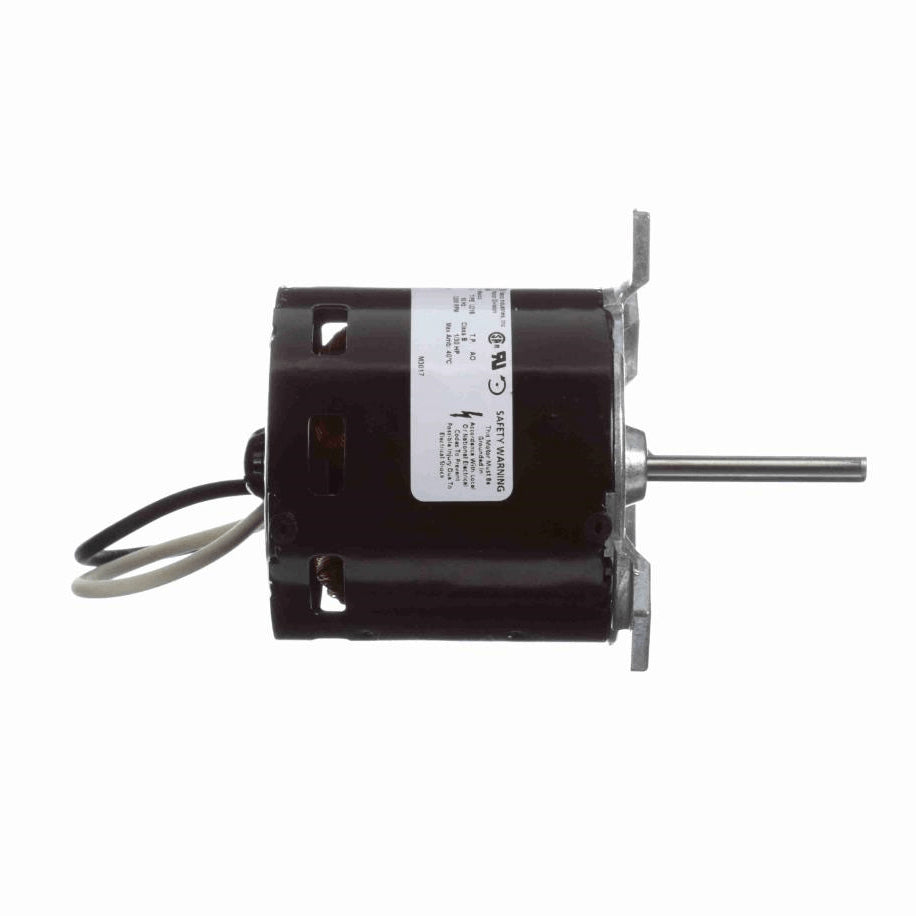

Century - D1196
- Draft Inducer Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Shell Enclosed Shaft End and Open Lead End, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 8" Leads with Terminal Housing
- Motor-Blower Bracket
Additional Information
Thermal ProtectionThermally Protected
Speed3200 rpm
Current1.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.40 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.96 in
Shaft Diameter0.313 in
Shaft Extension2.31 in
CEN
Starting MethodAcross The Line
