category:
Blowers
height:
3.38
length:
11
manufacturer:
Century
mpn:
D1192
subcategory:
Draft Inducer Blowers
weight:
3
width:
3.38

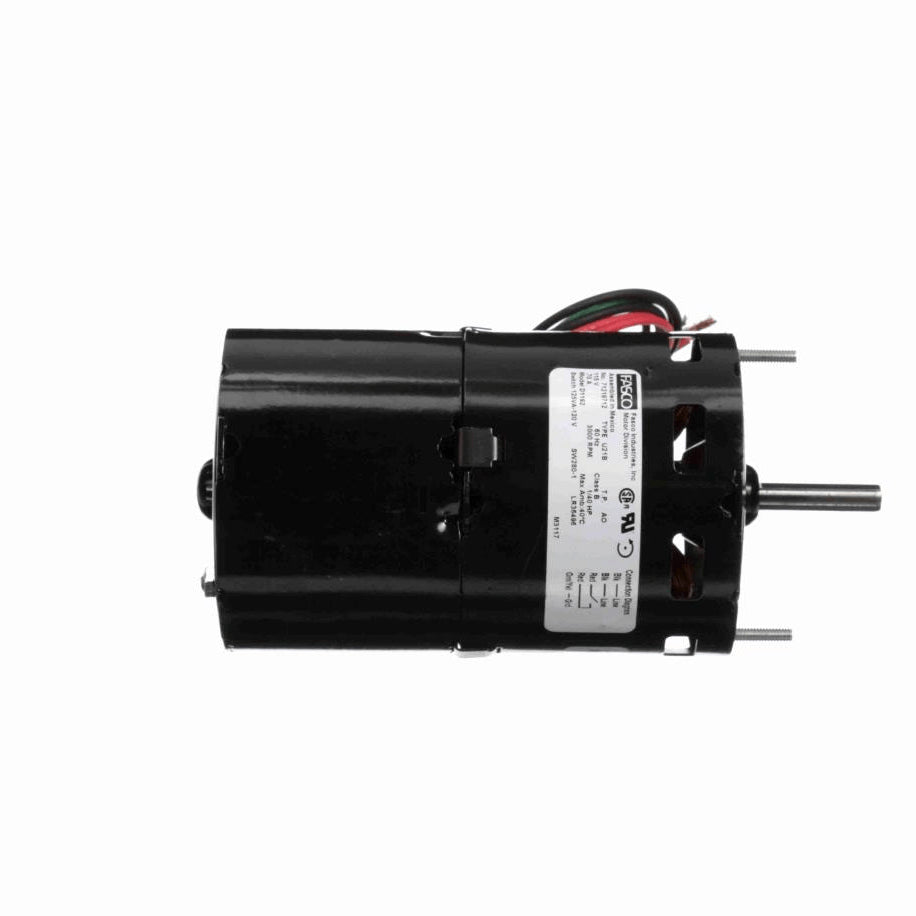

Product Overview
- Draft Inducer Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame and Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 8" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.00 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.62 in
Shaft Diameter0.313 in
Shaft Extension1.50 in
CEN
Starting MethodAcross The Line
