category:
Blowers
height:
4.38
length:
10.5
manufacturer:
Century
mpn:
D418
subcategory:
Draft Inducer Blowers
weight:
4.2
width:
5.38
Product Description

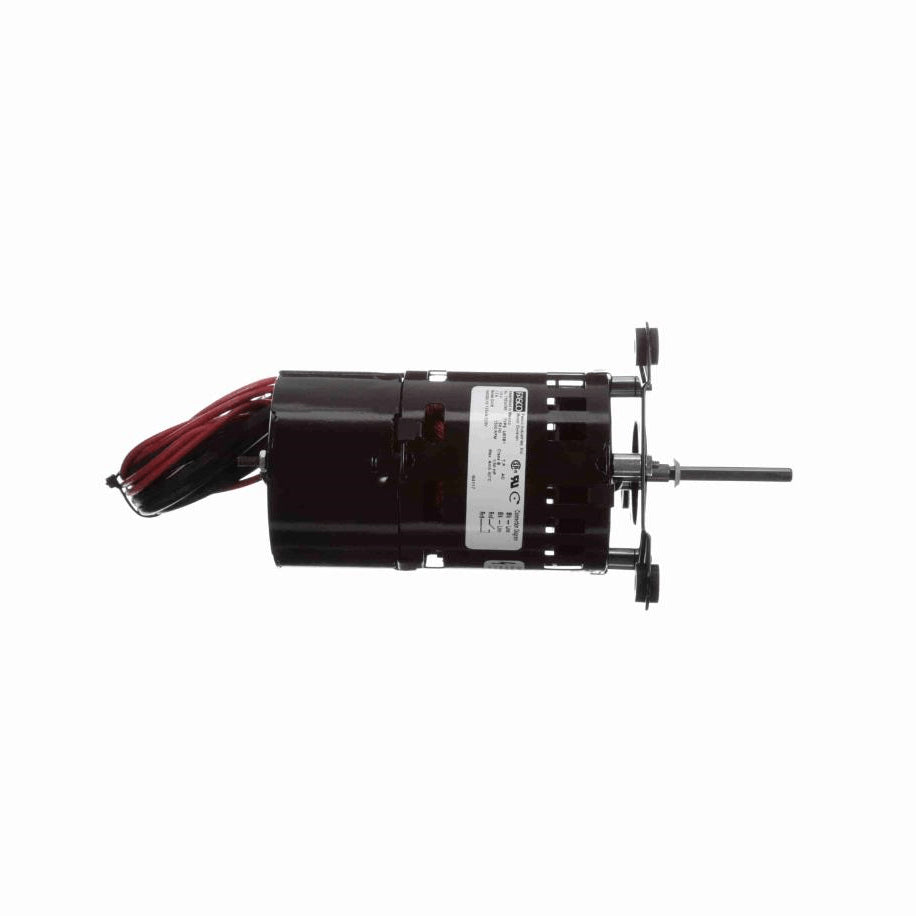

Century - D418
- Draft Inducer Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- 30" Leads with a Spade and Ring Terminal, 47" Swithch Leads with Spade Terminals
- Motor-Blower Mounting Plate
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current1.20 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.20 LB
Country Of originMexico
Output HP1/50 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingLug
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.95 in
Shaft Diameter0.250 in
Shaft Extension3.00 in
CEN
Starting MethodAcross The Line
