category:
Blowers
height:
4.56
length:
13
manufacturer:
Century
mpn:
D412
subcategory:
Draft Inducer Blowers
weight:
6
width:
5.5
Product Overview

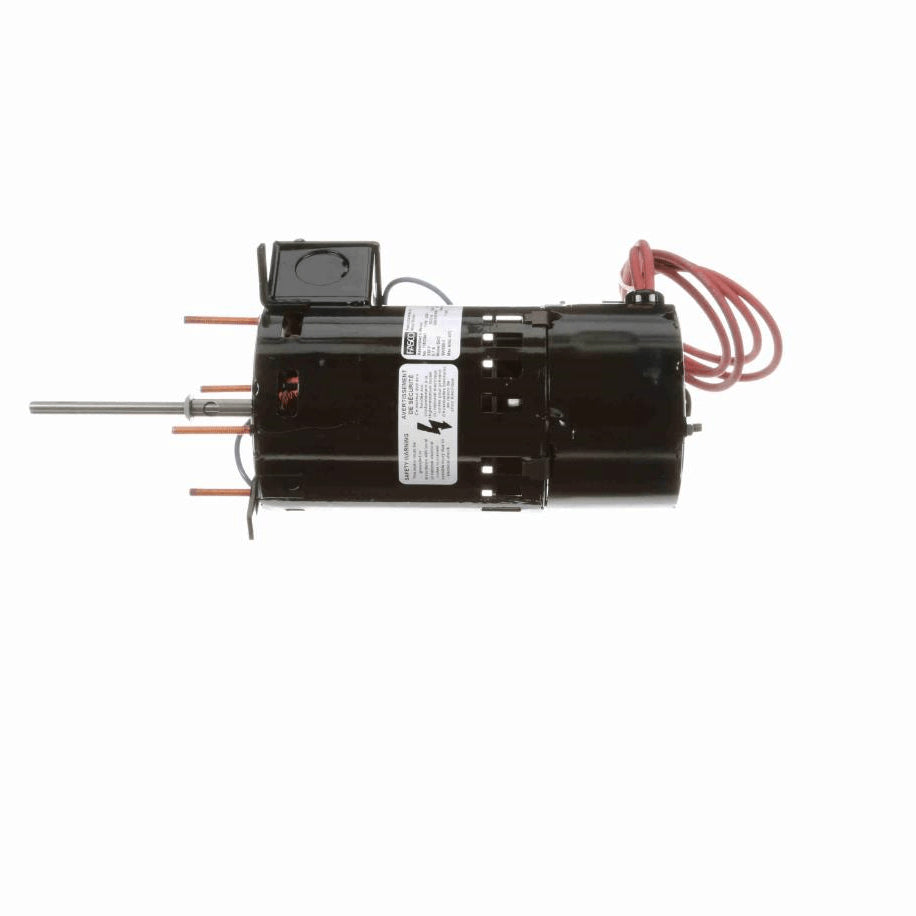

- Draft Inducer Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- 21" Leads, 21" Switch Leads
- Extended Studs Shaft End, Lug Mount
Additional Information
Thermal ProtectionThermally Protected
Speed3000/2500 rpm
Current.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/9 Hp
Output KW0.08 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles2
RotationReversible
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.50 in
Shaft Diameter0.250 in
Shaft Extension3.80 in
CEN
Starting MethodAcross The Line
