category:
Electric Motors
height:
3.38
length:
17
manufacturer:
Century
mpn:
D326
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.2
width:
3.38

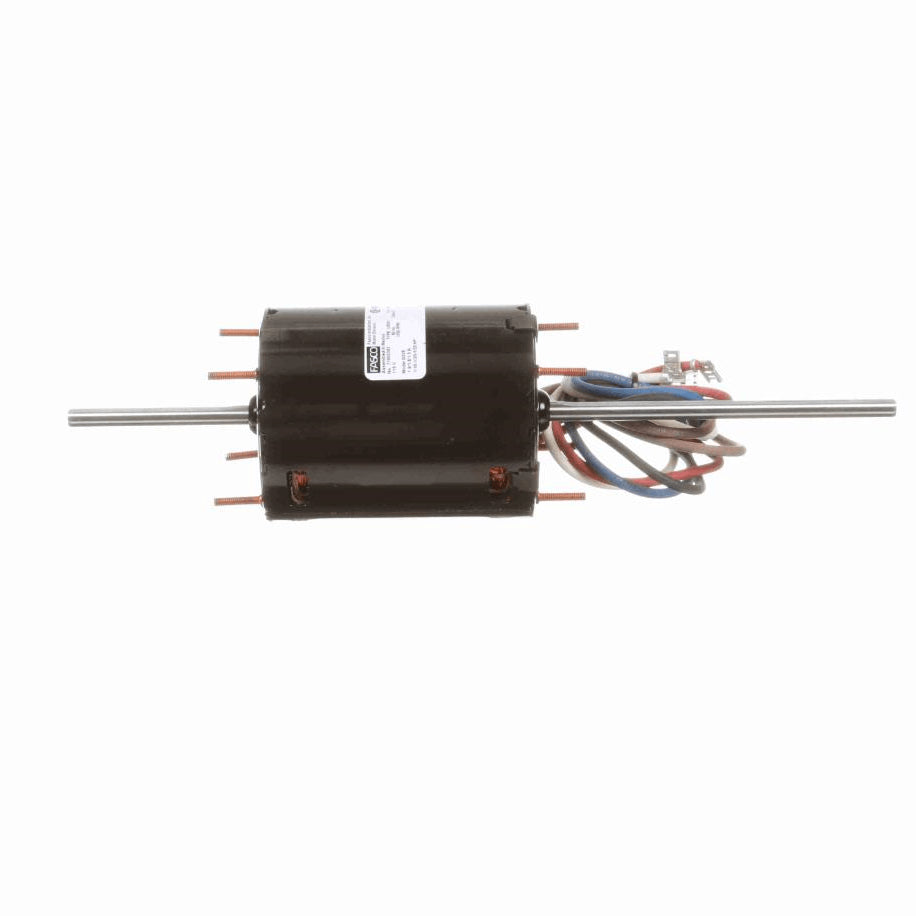

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Opposite Lead End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 18" Leads with Quick Connect Terminals
- Extended Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.90/1.80/1.50 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.20 LB
Country Of originMexico
Output HP1/10-1/20-1/25 Hp
Output KW0.07 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.95 in
Shaft Diameter0.312 in
Shaft Extension5.55 in
CEN
Starting MethodAcross The Line
