category:
Electric Motors
height:
6.5
length:
10
manufacturer:
Century
mpn:
D09617
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6
width:
5.13

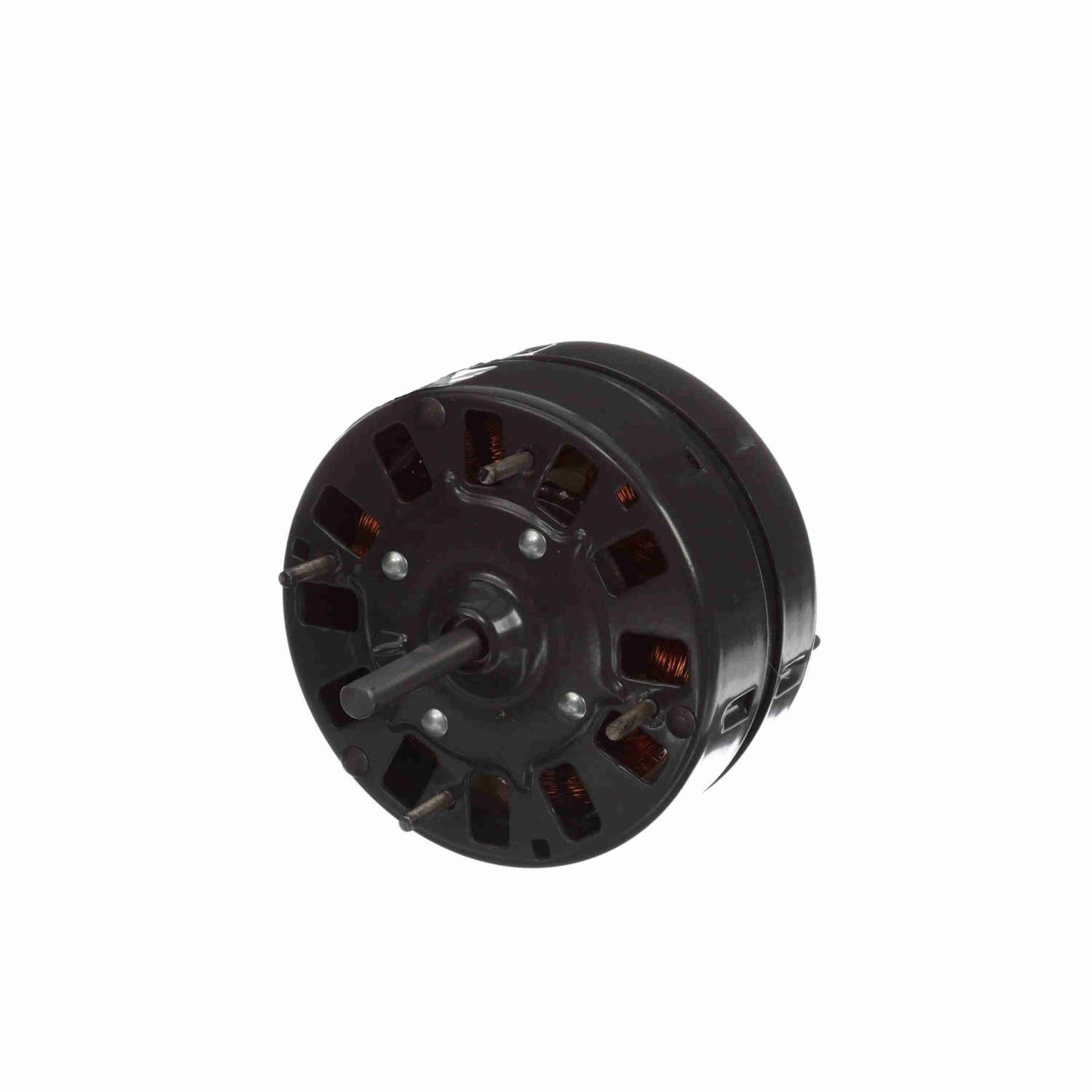

Product Overview
- Furnace Blower - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 24" Leads
- Extended Studs Shaft End and Opposite Shaft end
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.65 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.90 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
CEN
Starting MethodAcross The Line
