category:
Electric Motors
height:
4.38
length:
10.5
manufacturer:
Century
mpn:
D129
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.6
width:
5.38

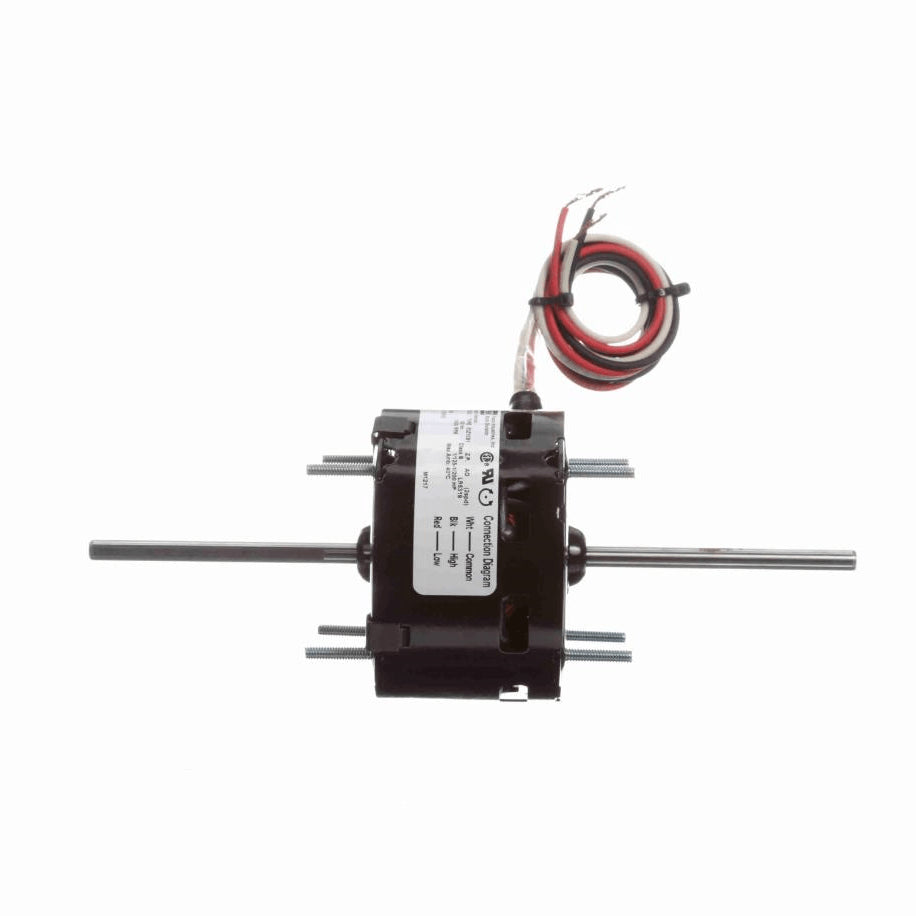

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Impedance Protected
- Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 21" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionImpedance
Speed1500 rpm
Current0.50/0.30 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.60 LB
Country Of originMexico
Output HP1/125-1/200 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.95 in
Shaft Diameter0.250 in
Shaft Extension3.25 in
CEN
Starting MethodAcross The Line
