category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D109
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.8
width:
3.38

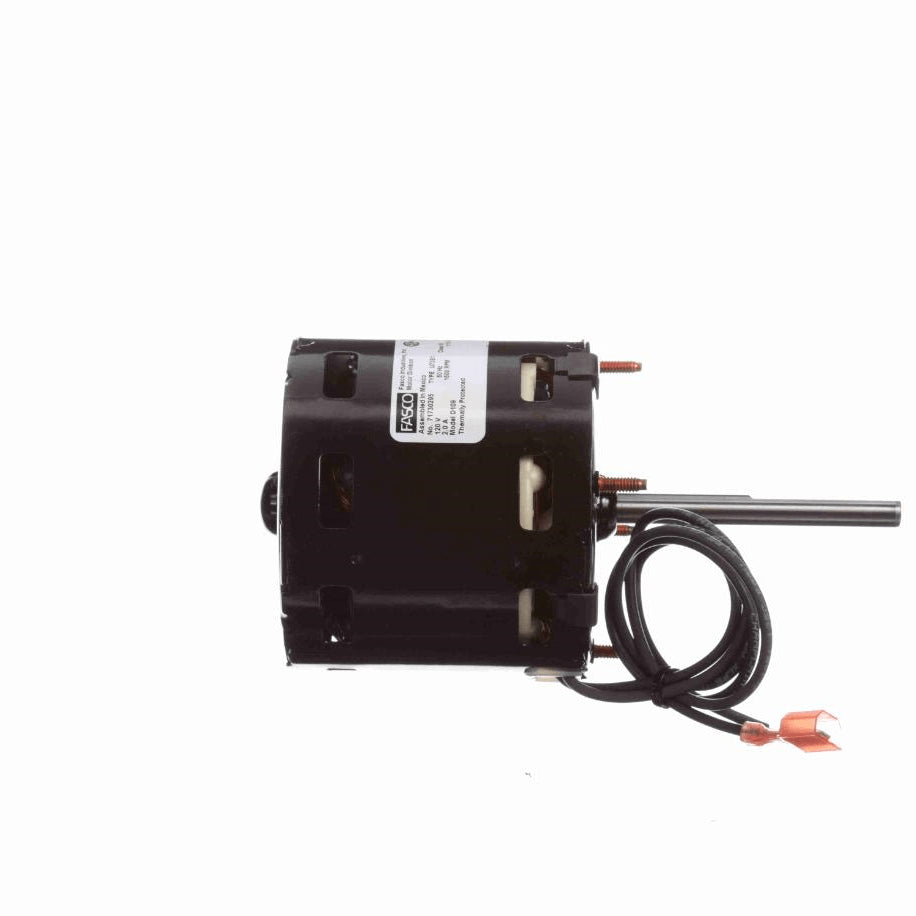

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame, Open Shell, Enclosed Opposite Shaft End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- (1) 12" Lead, (1) 16" Lead with Quick Connect Spade Terminal
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1600 rpm
Current2.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.80 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles12
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.82 in
Shaft Diameter0.313 in
Shaft Extension3.00 in
CEN
Starting MethodAcross The Line
