category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D107
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.8
width:
3.38

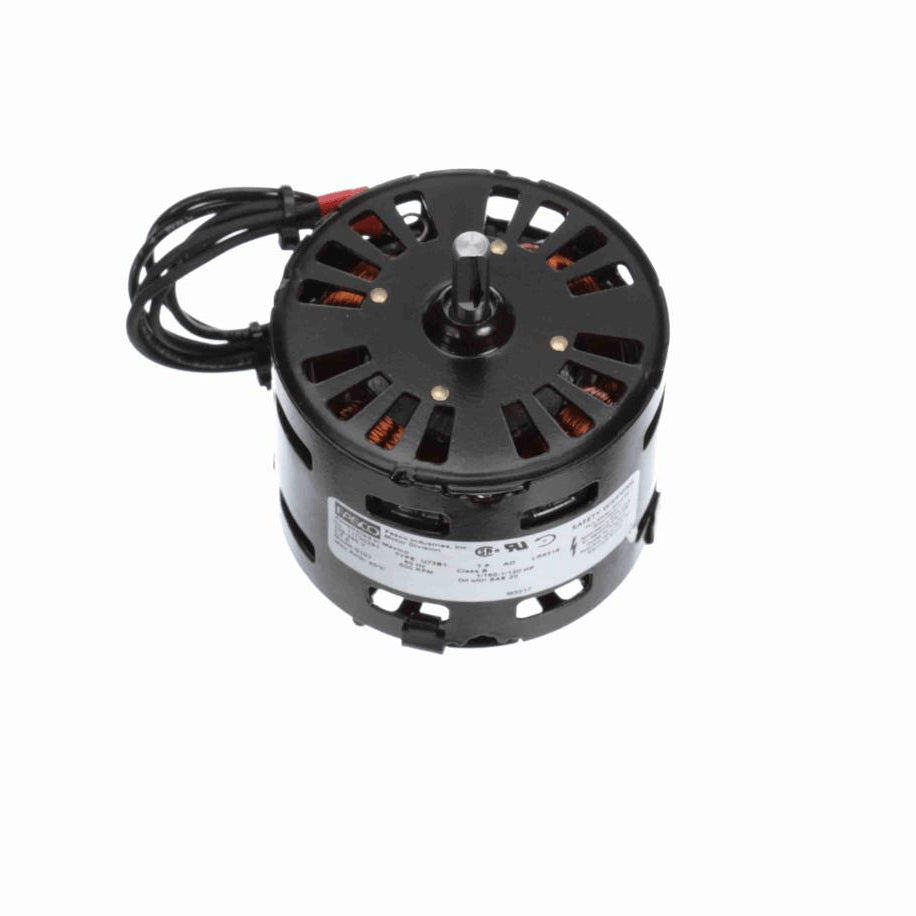

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 16" Leads with Ring Terminals
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed600 rpm
Current0.50 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.80 LB
Country Of originMexico
Output HP1/160 - 1/120 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles12
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.32 in
Shaft Diameter0.313 in
Shaft Extension1.00 in
CEN
Starting MethodAcross The Line
