category:
Electric Motors
height:
6.02
length:
14.24
manufacturer:
Century
mpn:
D974
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.14
width:
6.04

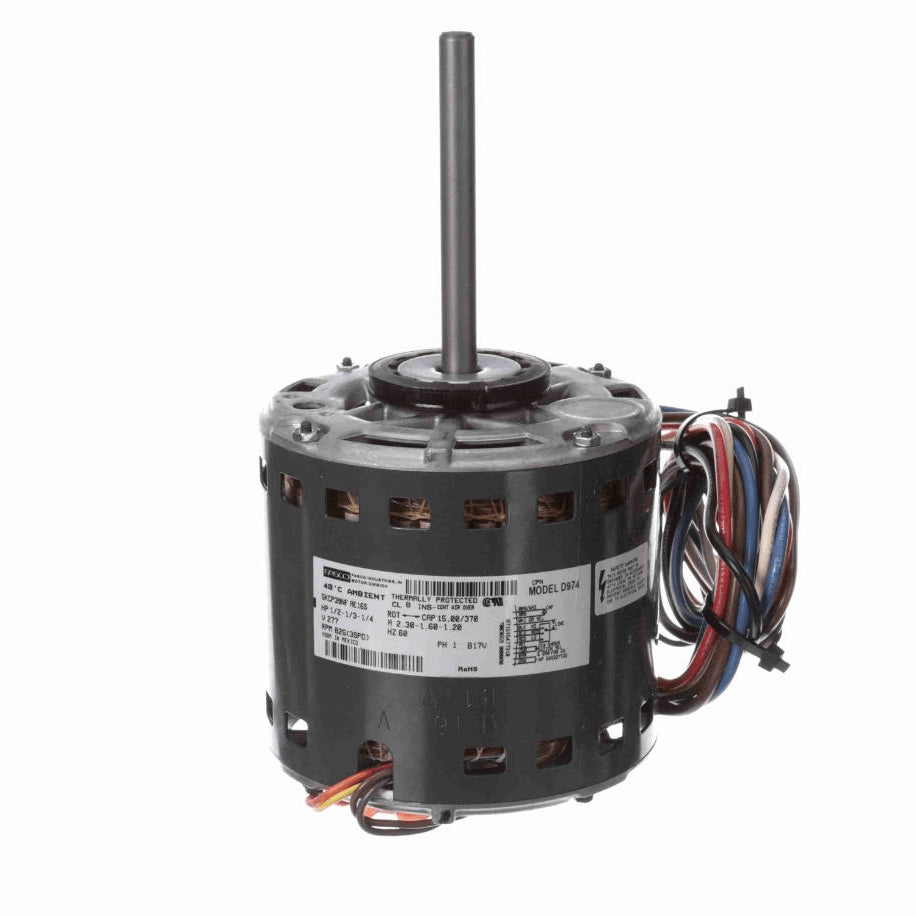

Product Overview
- Direct Drive Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current2.30-1.60-1.20 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.14 LB
Country Of originMexico
Output HP1/2-1/3-1/4 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise/Clockwise
MountingResilient Rings
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.57 in
Shaft Diameter0.500 in
Shaft Extension4.50 in
CEN
