category:
Electric Motors
height:
4.5
length:
8
manufacturer:
Century
mpn:
D138
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.4
width:
4.5

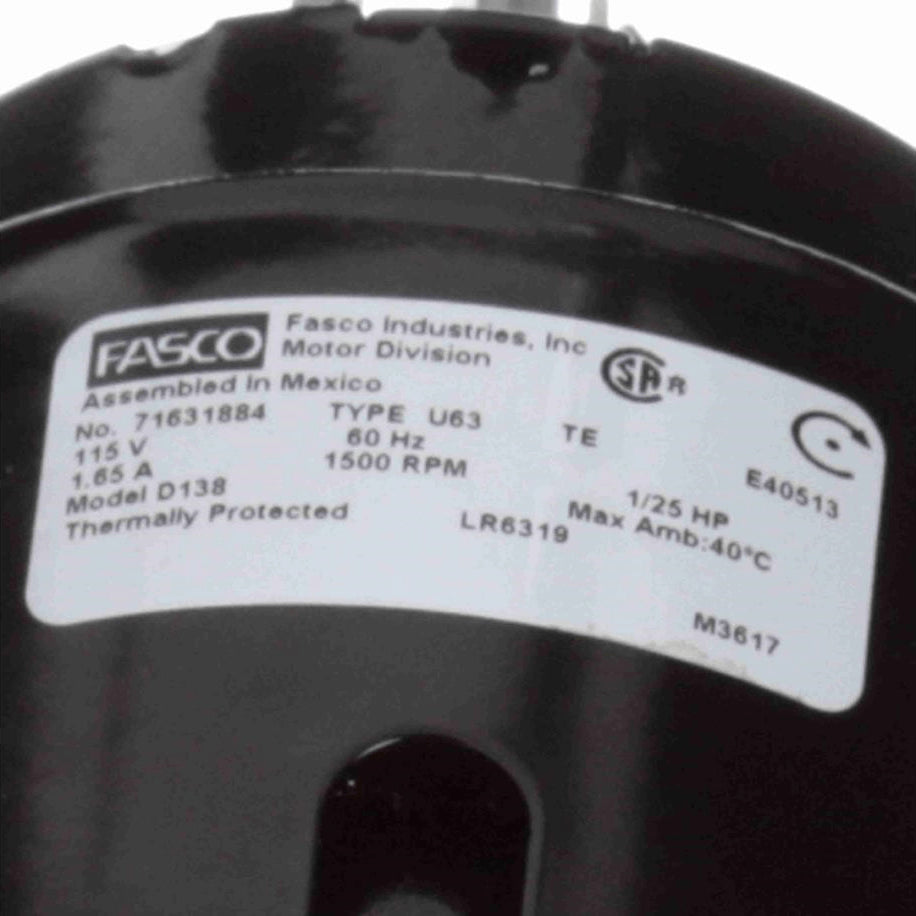

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Fan Cooled
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current1.65 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight5.40 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingResilient Base
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.01 in
Shaft Diameter0.313 in
Shaft Extension2.60 in
CEN
Starting MethodAcross The Line
