category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D365
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.2
width:
3.38

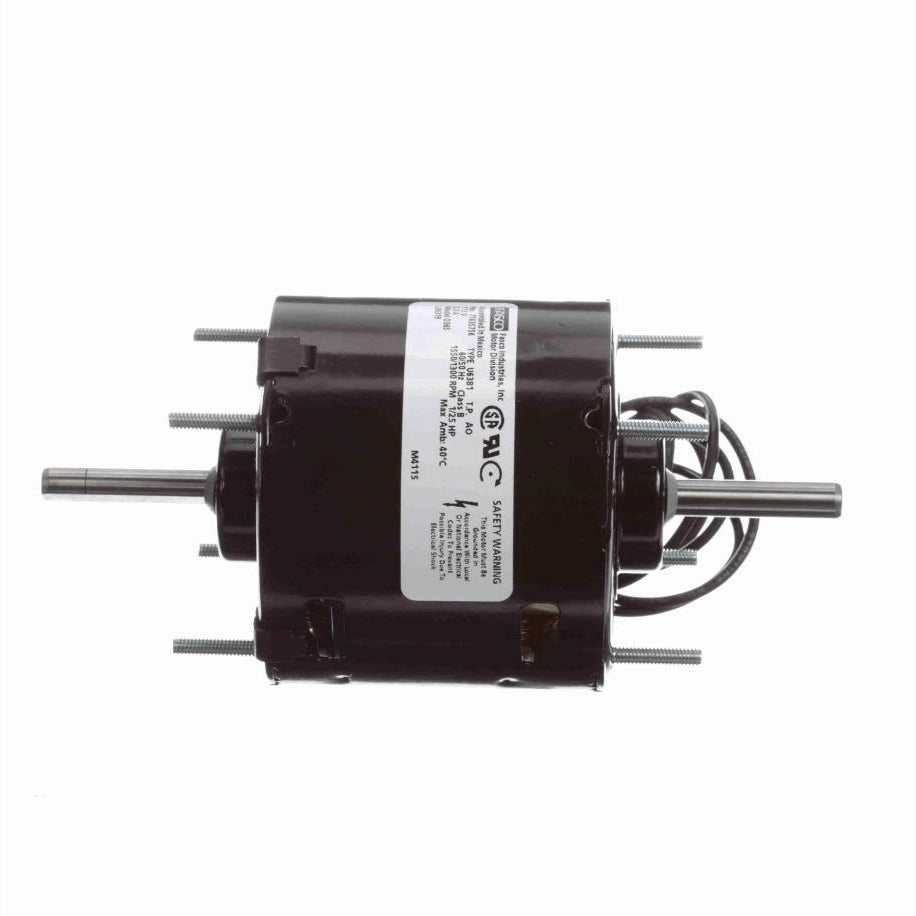

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 18" Leads
- Extended Studs Lead End and Opposite Lead End, Round Hub Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550/1300 rpm
Current2.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.20 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.70 in
Shaft Diameter0.313 in
Shaft Extension1.875 in
CEN
Starting MethodAcross The Line
