category:
Electric Motors
height:
15
length:
5.13
manufacturer:
Century
mpn:
D152
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13.33
width:
5.13
Product Overview

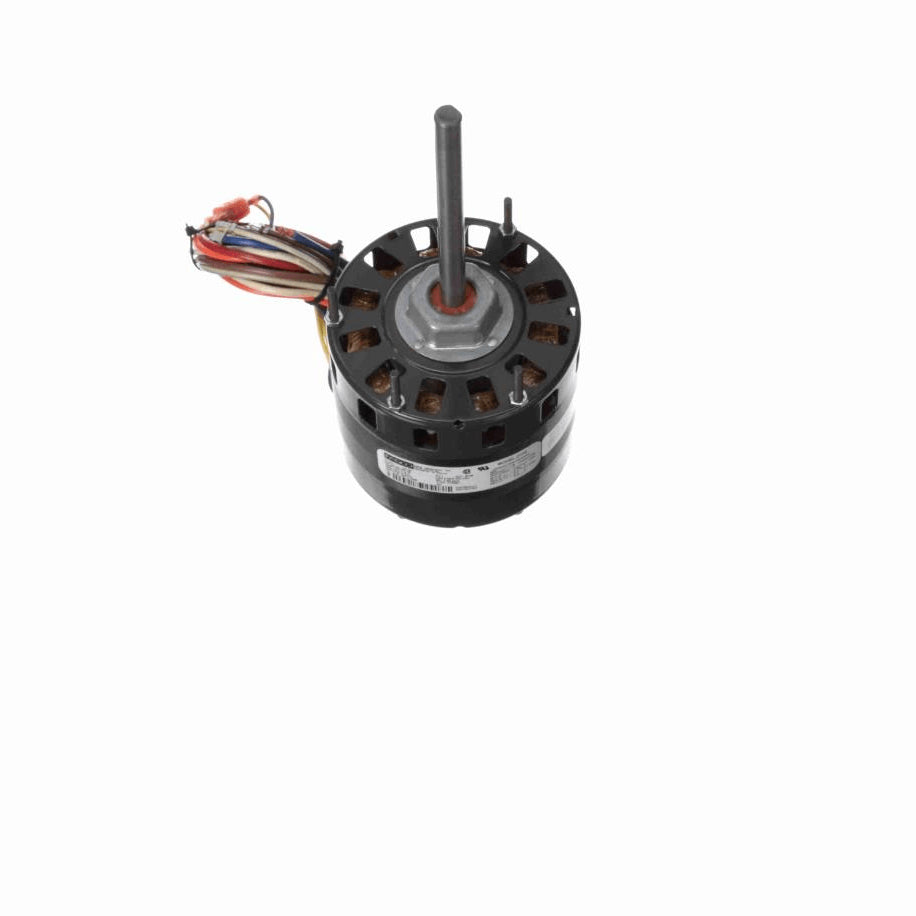

- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.6/1.1/0.9/0.7 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.33 LB
Country Of originMexico
Output HP1/4-1/5-1/6-1/8 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension6.00 in
CEN
Starting MethodAcross The Line
