category:
Electric Motors
height:
3.38
length:
11
manufacturer:
Century
mpn:
D205
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.7
width:
3.38

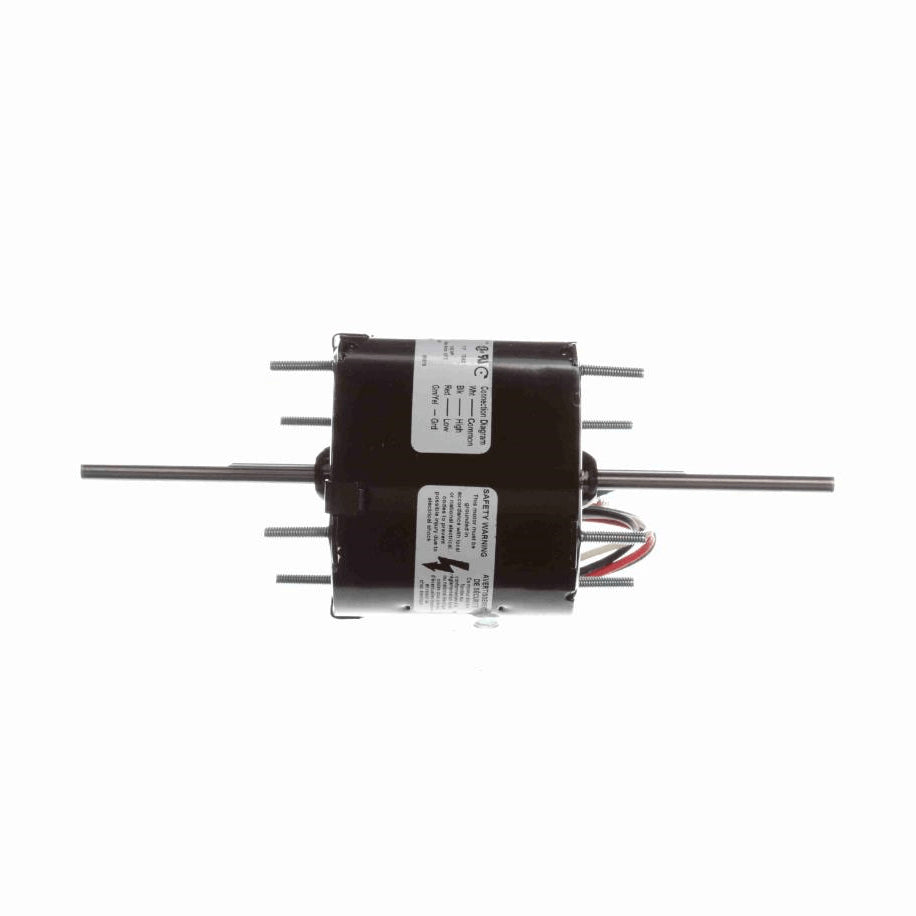

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.0 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.70 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.92 in
Shaft Diameter0.250 in
Shaft Extension3.0X0.25X3.0 in
CEN
Starting MethodAcross The Line
