category:
Electric Motors
height:
10
length:
5.13
manufacturer:
Century
mpn:
D316
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8.6
width:
5.13

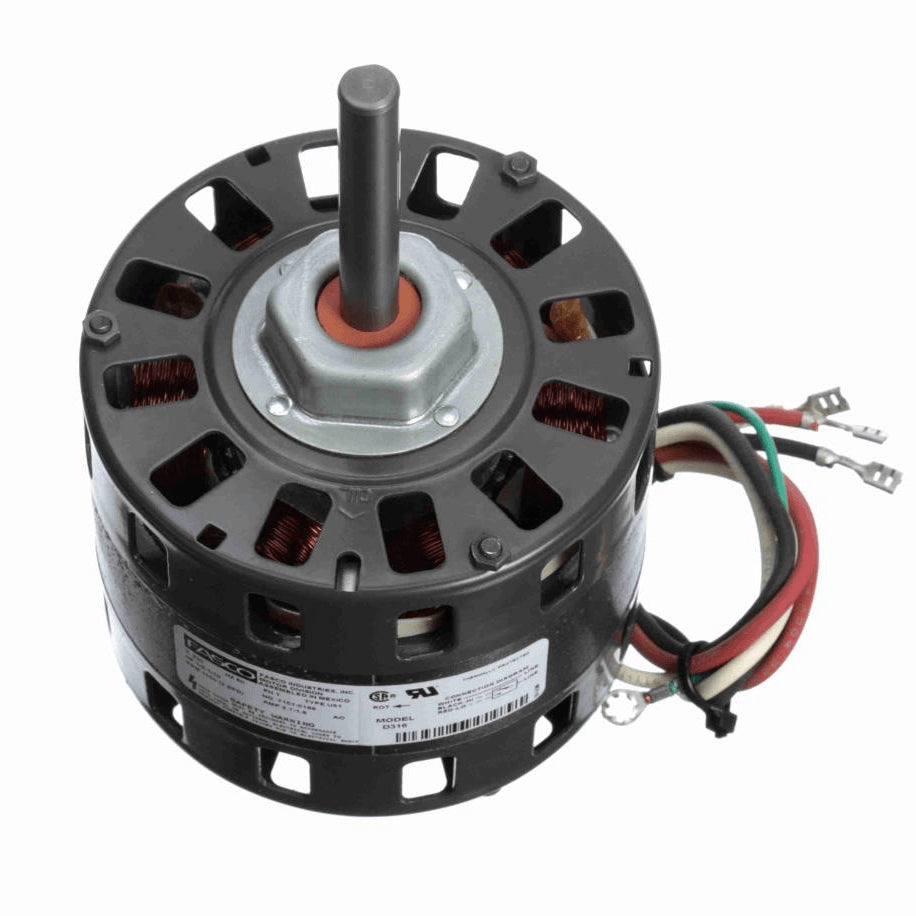

Product Overview
- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 17" Leads with Quick Connect Terminals
- Hex Mounting Hubs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1050 rpm
Current2.1-1.8 A A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.60 LB
Country Of originMexico
Output HP1/8-1/10 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingHexagonal Hubs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3.55 in
CEN
Starting MethodAcross The Line
