category:
Electric Motors
height:
5
length:
8
manufacturer:
Century
mpn:
D219
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6
width:
5.63

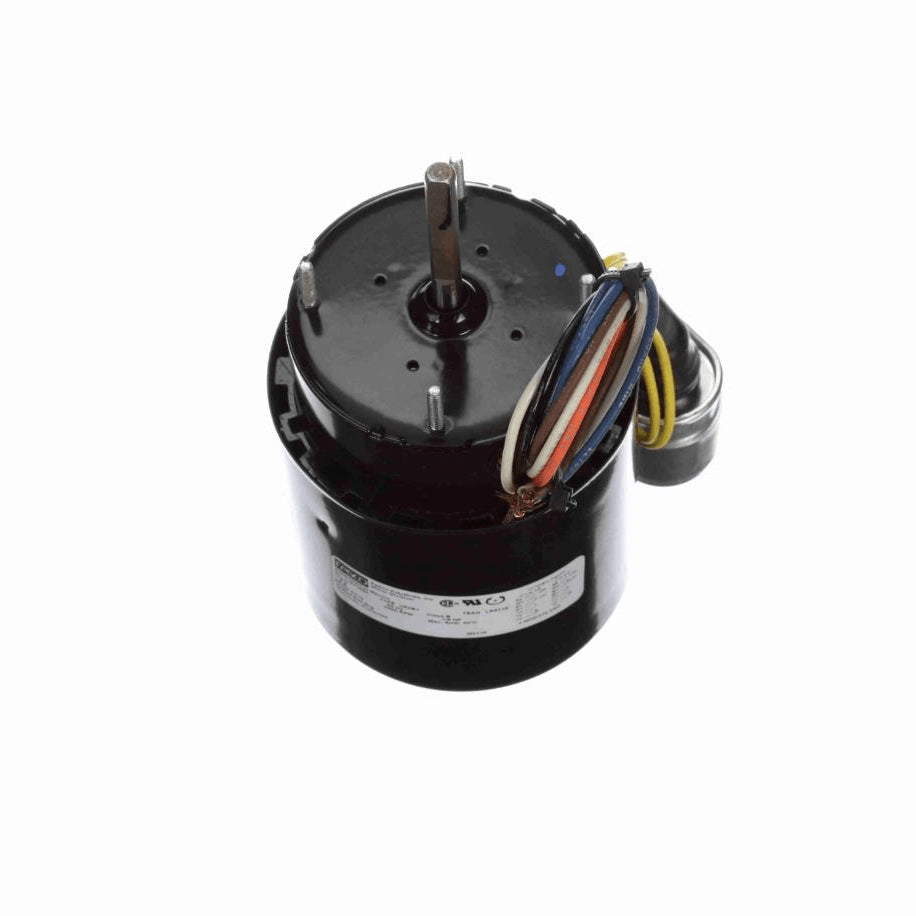

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Fan Cooled
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles2
RotationReversible
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.94 in
Shaft Diameter0.312 in
Shaft Extension2.3 in
CEN
Starting MethodAcross The Line
