category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D123
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3
width:
3.38

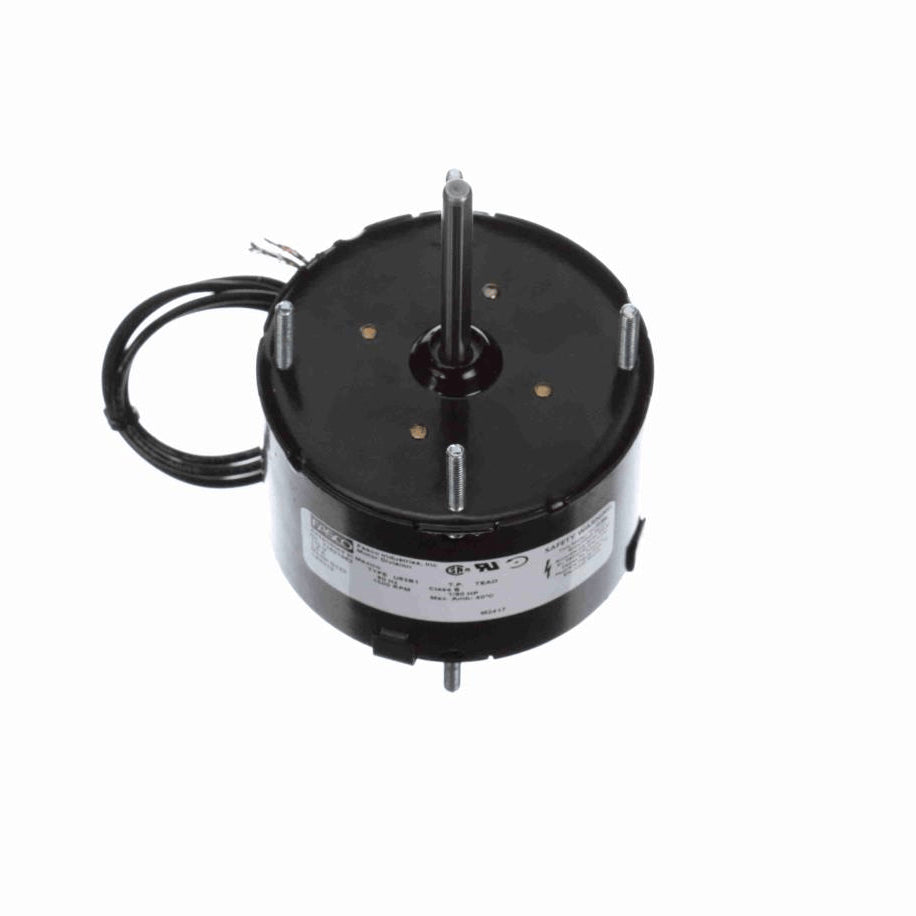

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current0.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.00 LB
Country Of originMexico
Output HP1/80 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.95 in
Shaft Diameter0.250 in
Shaft Extension2.30 in
CEN
Starting MethodAcross The Line
