category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D200
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.6
width:
3.38

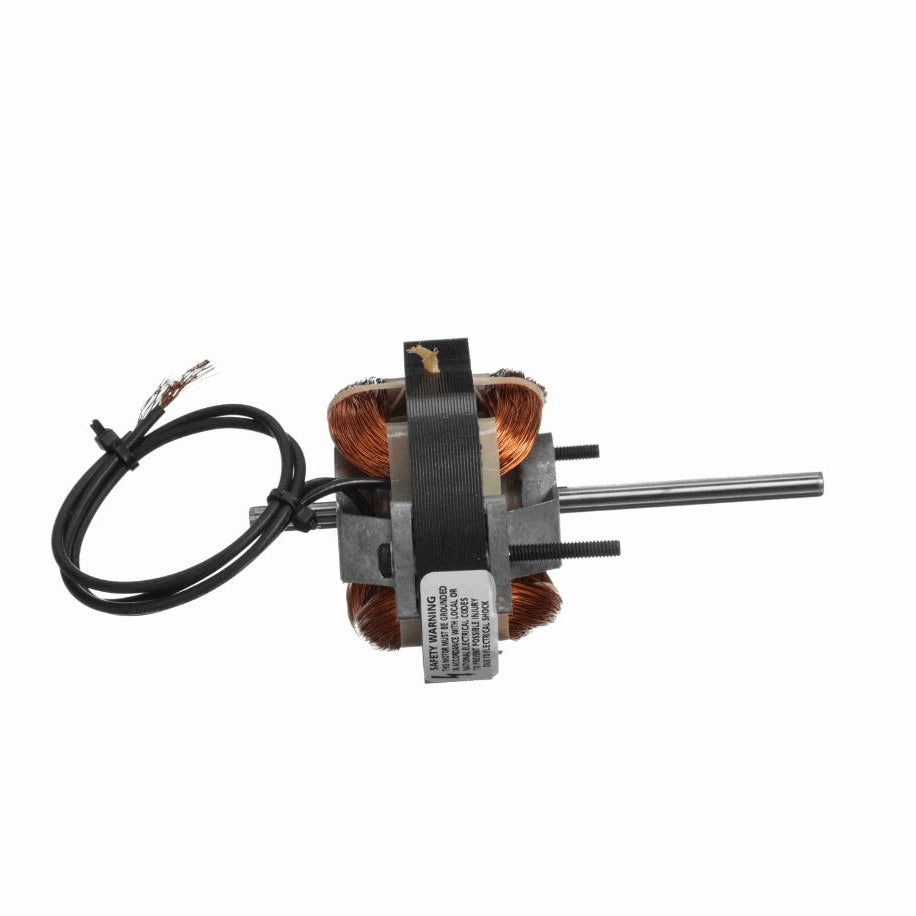

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Opposite Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.62 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight1.60 LB
Country Of originMexico
Output HP1/85 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.250 in
Shaft Extension2.38 in
CEN
Starting MethodAcross The Line
