category:
Electric Motors
height:
20
length:
4.38
manufacturer:
Century
mpn:
D336
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7.2
width:
4.38

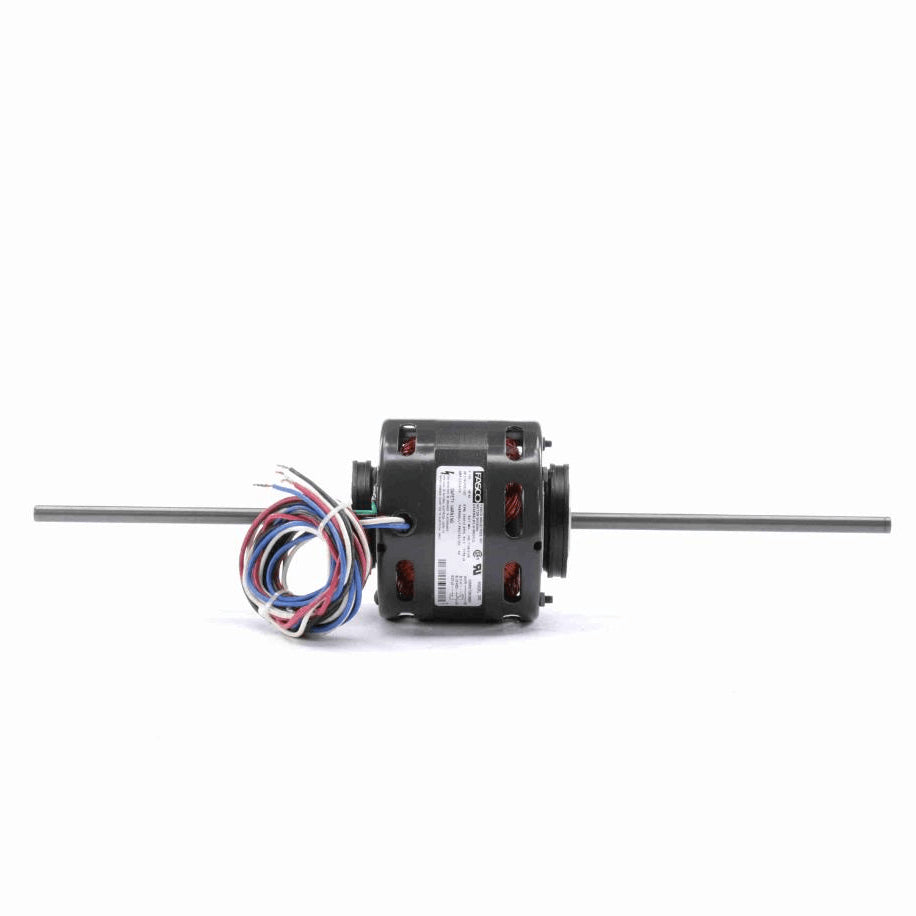

Product Overview
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 60" Leads
- Resilient Mounting Rings
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current3.5-2.4-1.8 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight7.20 LB
Country Of originMexico
Output HP1/10-1/15-1/25 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationReversible
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension7.5 in
CEN
Starting MethodAcross The Line
