category:
Electric Motors
height:
22
length:
5.13
manufacturer:
Century
mpn:
D255
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.13
Product Description

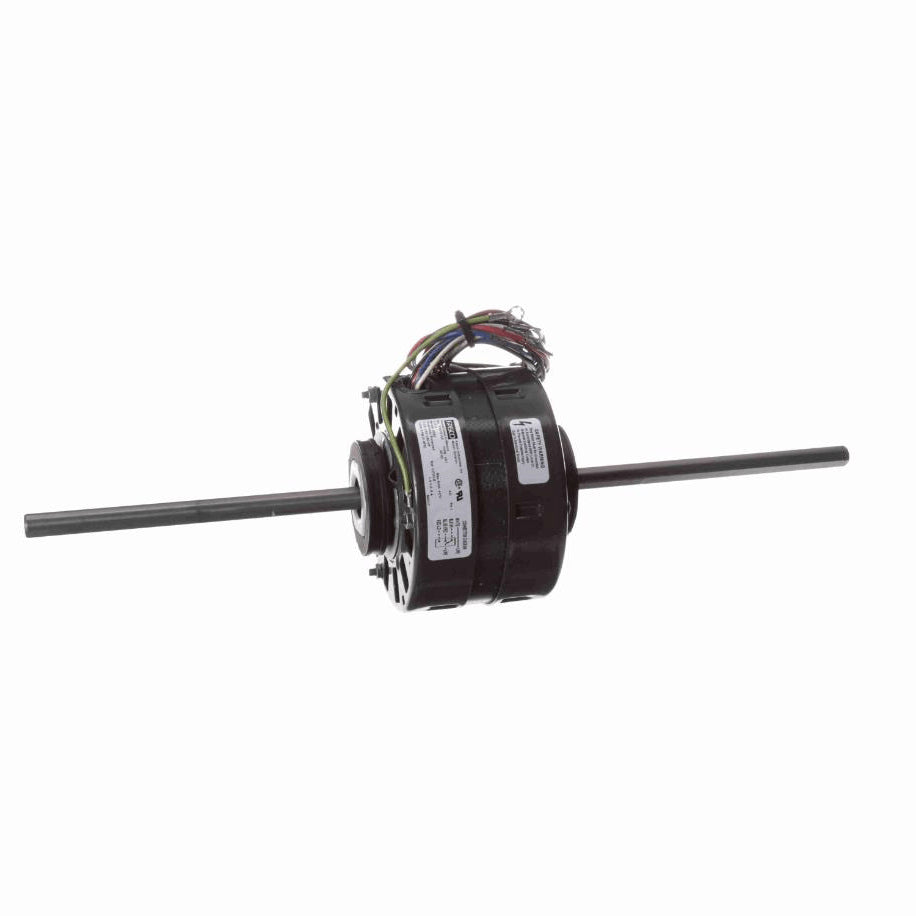

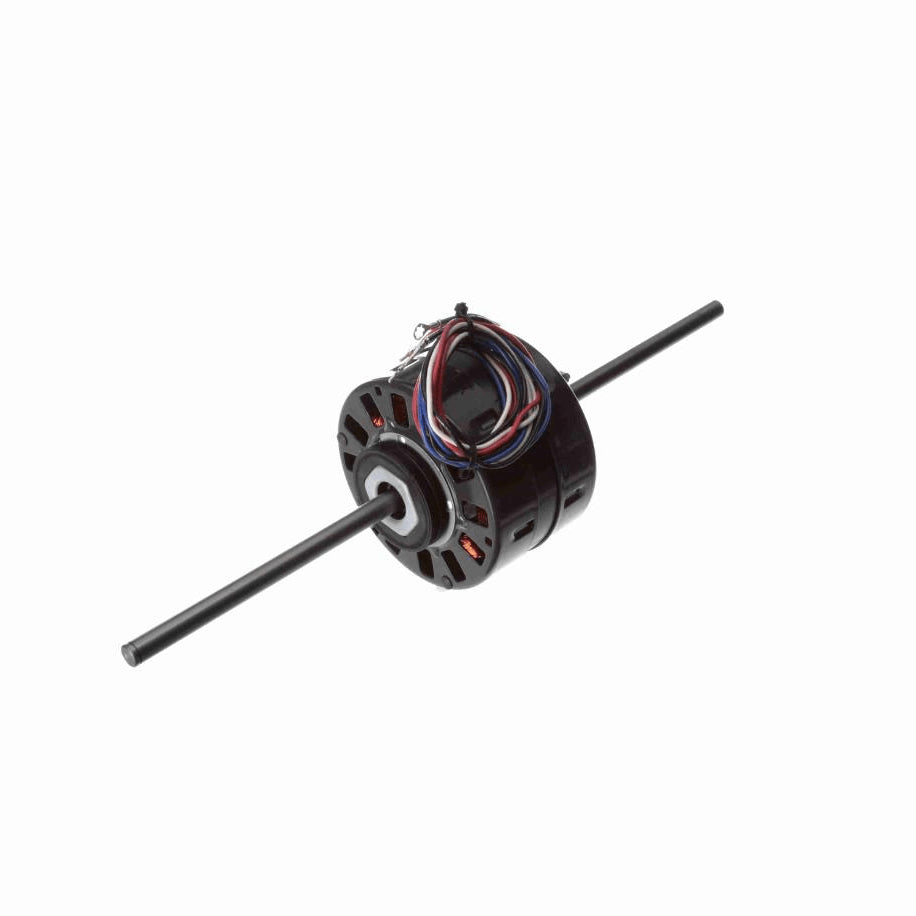

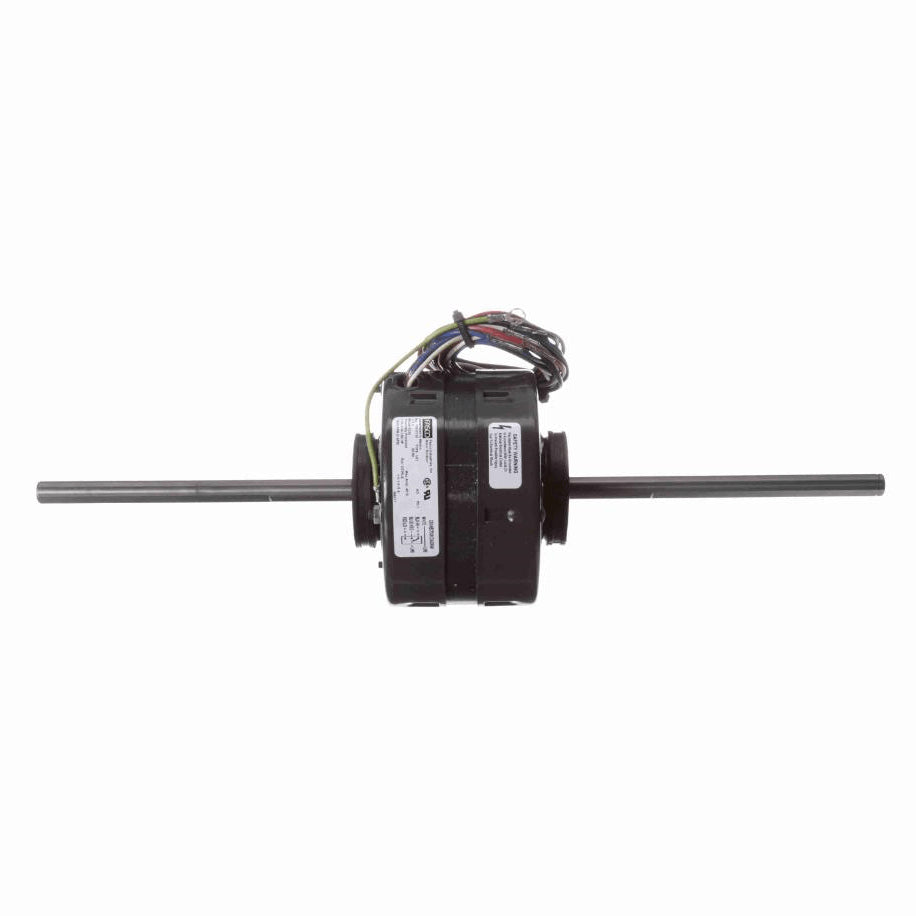

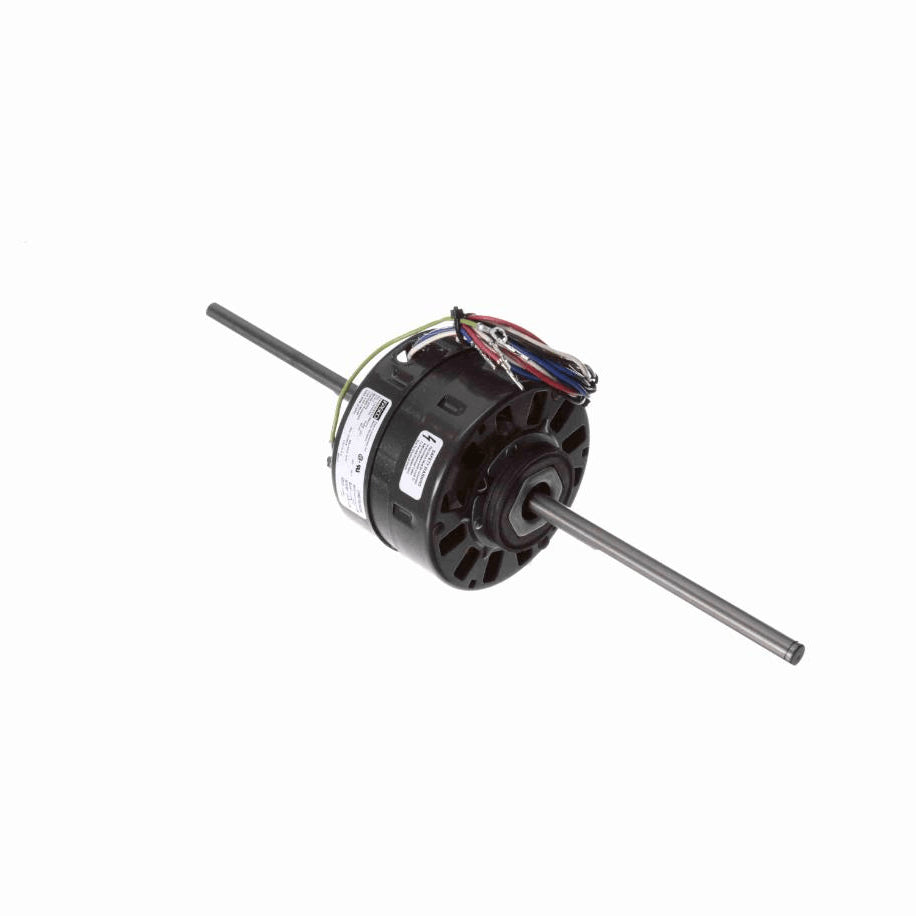

Century - D255
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 35" Leads with PIN Terminal
- Resilient Mounting Ring Lead End and Opposite Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1050 rpm
Current1.5/1.0/0.6 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/25-1/50-1/80 Hp
Output KW0.03 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension7.50 in
CEN
Starting MethodAcross The Line
