category:
Electric Motors
height:
22
length:
5.13
manufacturer:
Century
mpn:
D1025
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.6
width:
5.13

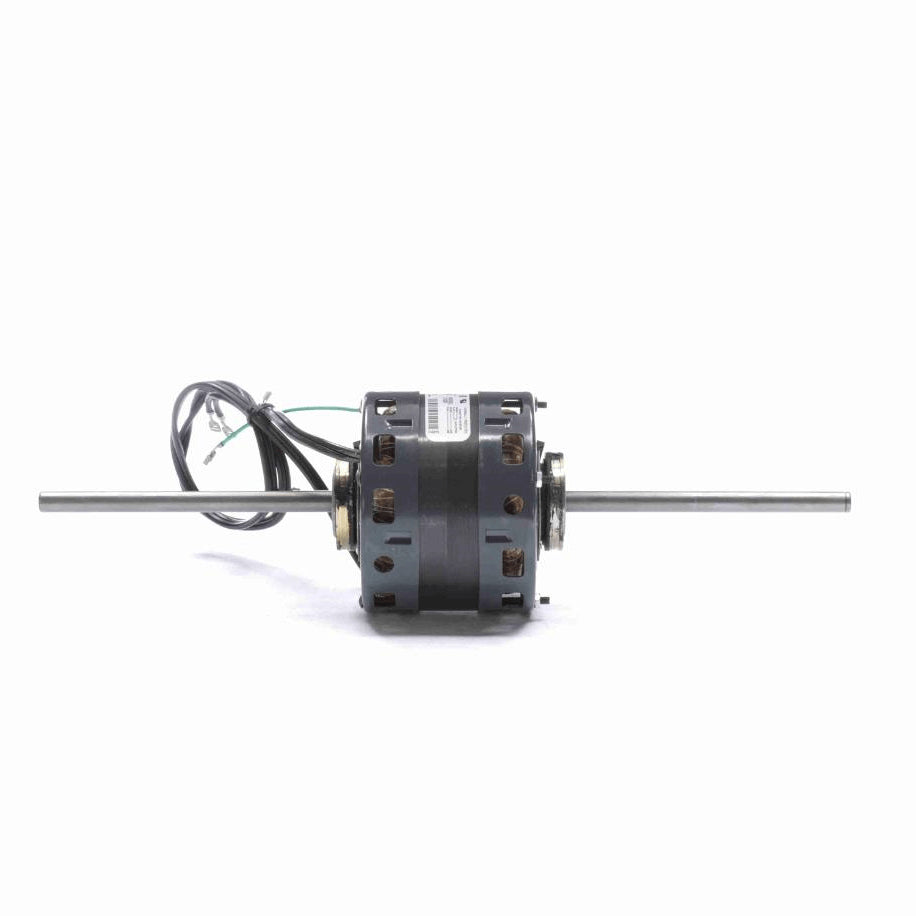

Product Overview
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 31" Leads with Terminal
- Resilient Mounting Ring Lead End and Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current2.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.60 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension7.125 in
CEN
Starting MethodAcross The Line
