category:
Electric Motors
height:
25
length:
6.63
manufacturer:
Century
mpn:
D247
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.8
width:
5.13
Product Overview

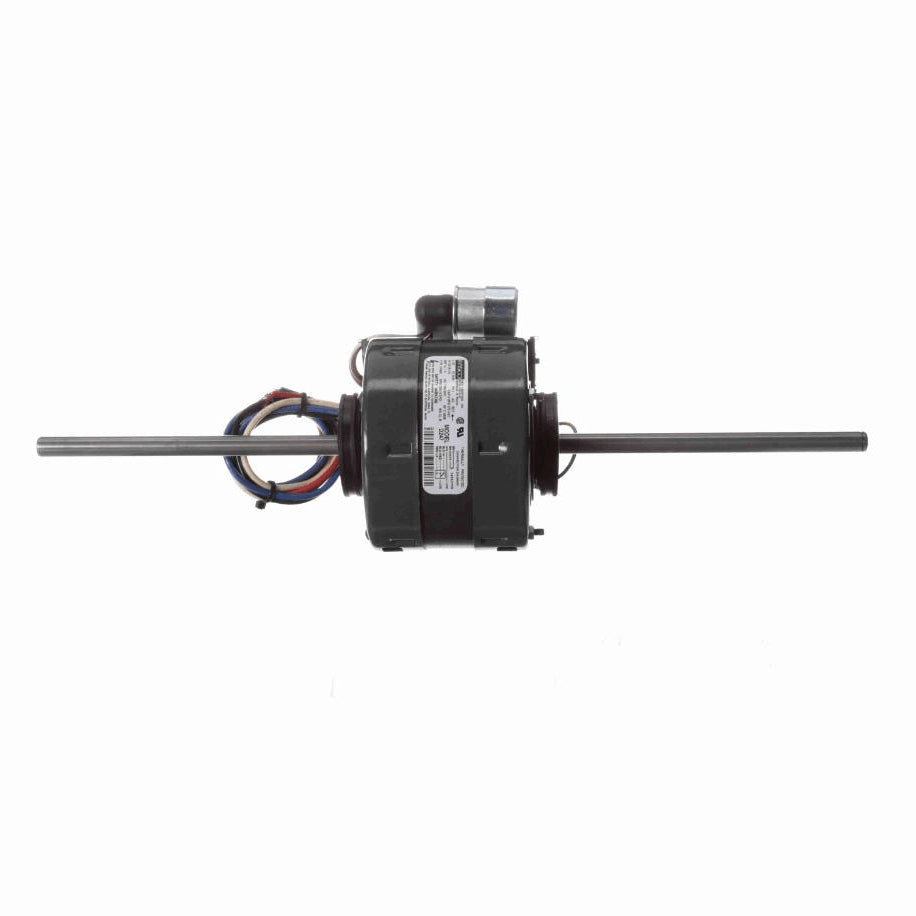

- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 18" Leads with .5" Strip
- Resilient Mounting Ring Lead End and Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.0/0.7/0.5 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.80 LB
Country Of originMexico
Output HP1/6-1/8-1/12 Hp
Output KW0.13 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension8.00 in
CEN
Starting MethodAcross The Line
