category:
Electric Motors
height:
10
length:
6.13
manufacturer:
Century
mpn:
D1169
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
5.5

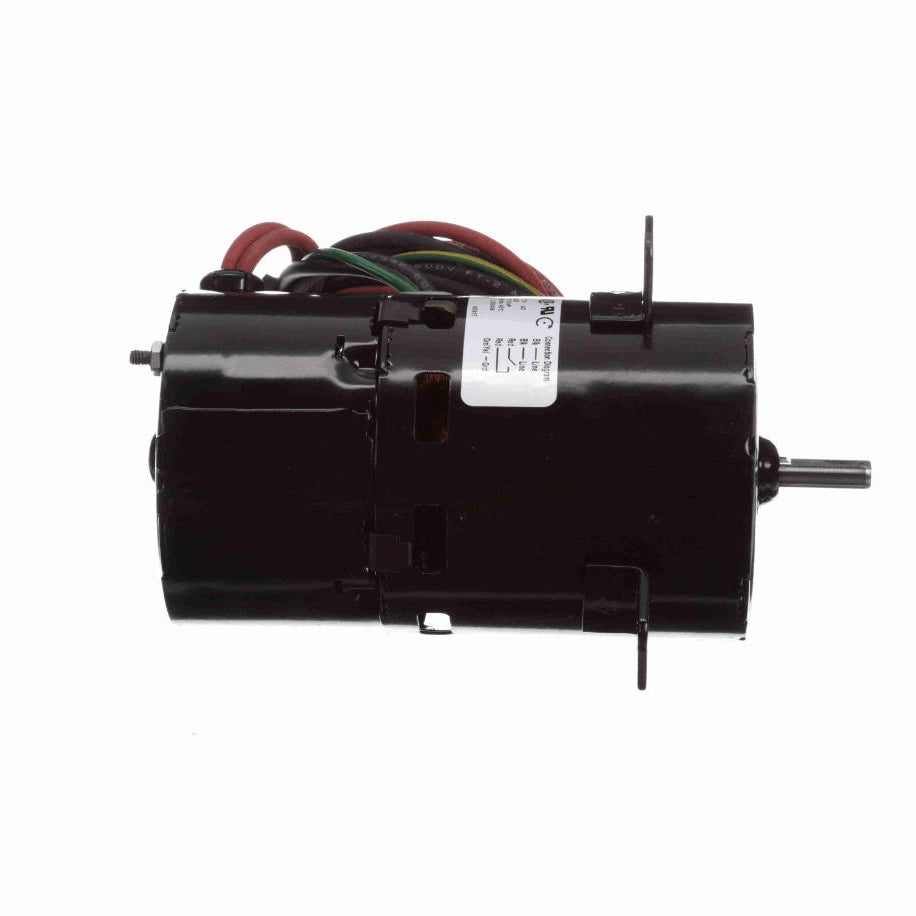

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 24" Power Leads, 24" Switch Leads
- Lug Mount
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.5/1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.43 in
Shaft Diameter0.313 in
Shaft Extension1.1 in
CEN
Starting MethodAcross The Line
