category:
Electric Motors
height:
10
length:
4.38
manufacturer:
Century
mpn:
D1039
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7.6
width:
4.38

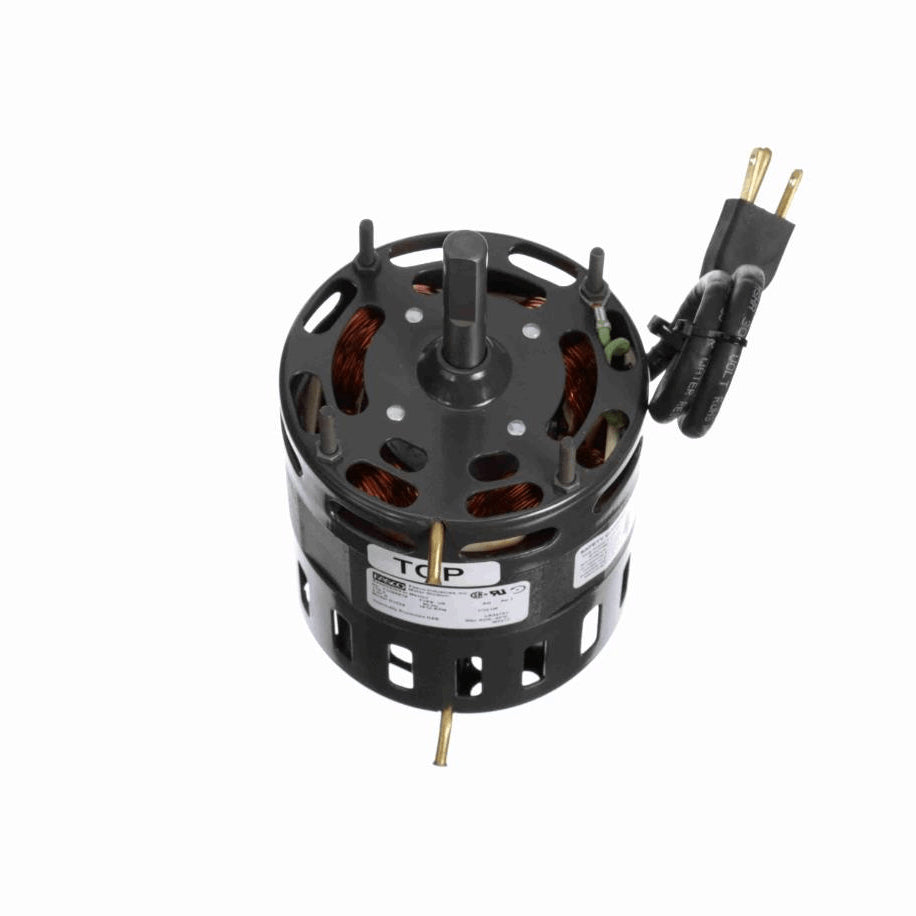

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads with Molded Plug
- Extended Studs Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1610 rpm
Current3.07 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight7.60 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.40 in
CEN
Starting MethodAcross The Line
