category:
Electric Motors
height:
4.38
length:
8.75
manufacturer:
Century
mpn:
D1128
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.8
width:
5.38

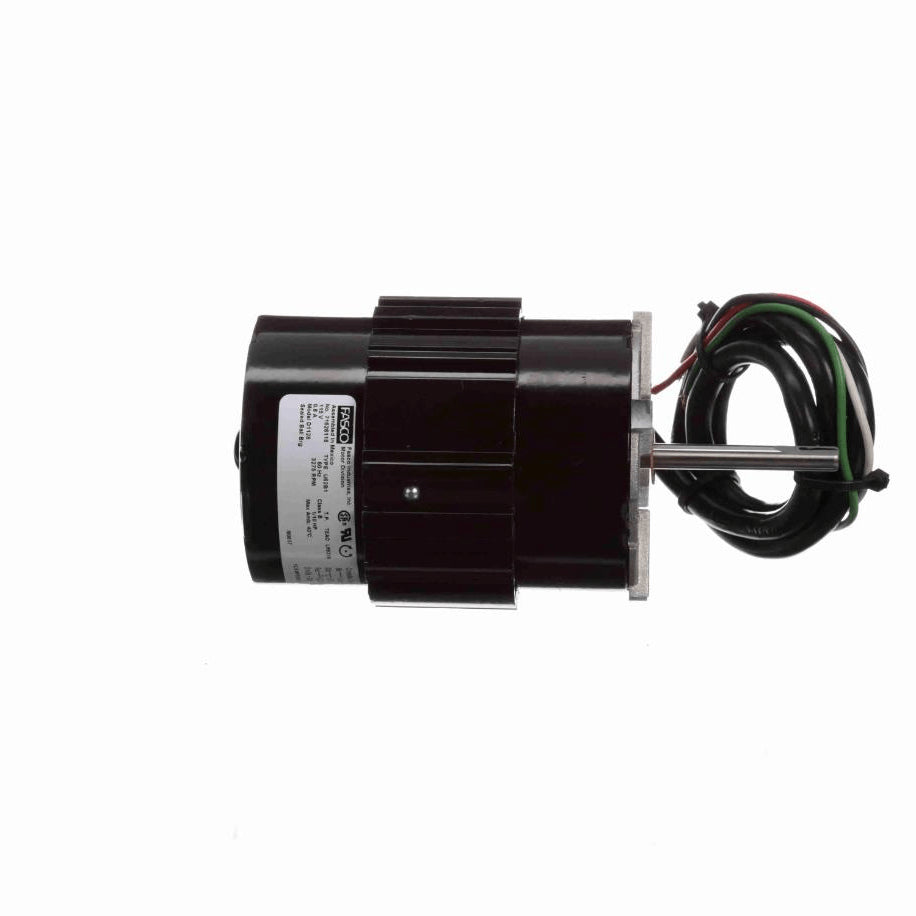

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-300 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sealed Ball Bearing
- .5/16" Diameter Shaft with Flat
- 36" Leads
- 4X #10-24 UNC-2B Thread 2.844BC
Additional Information
Thermal ProtectionThermally Protected
Speed3275 rpm
Current.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.80 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles2
RotationReversible
MountingRound Belly Band
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.58 in
Shaft Diameter0.313 in
Shaft Extension2.30 in
CEN
Starting MethodAcross The Line
