category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D1155
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.2
width:
3.38

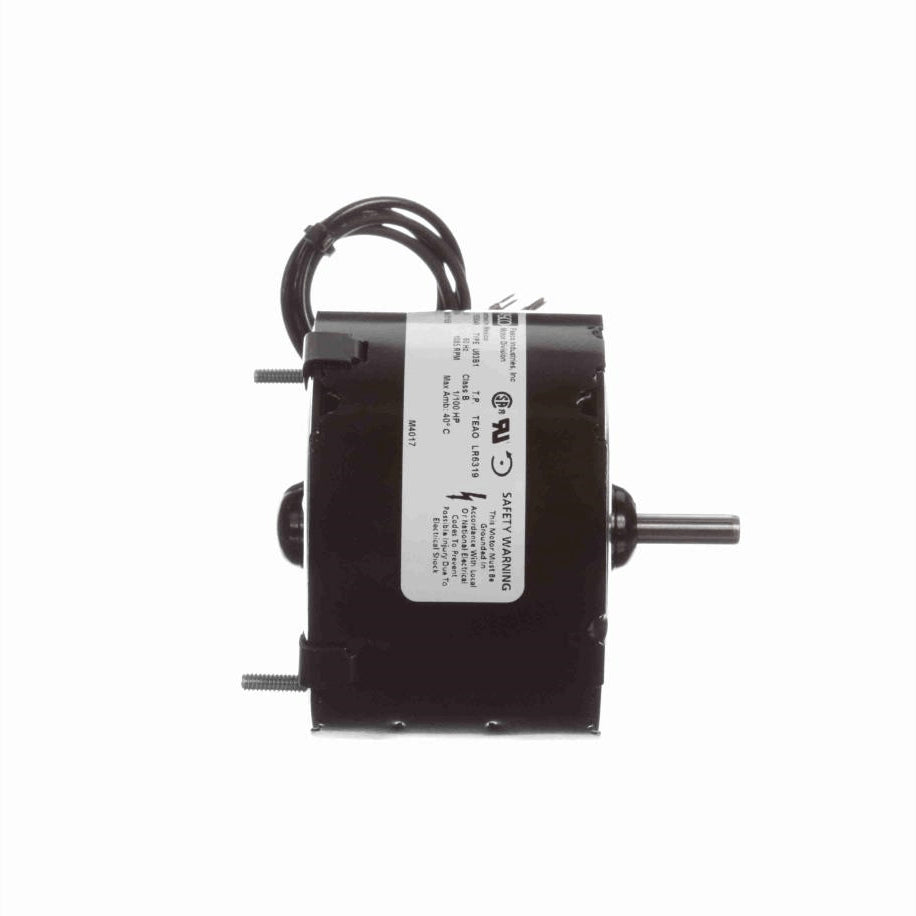

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 10" Leads with PIN Terminals
- Extended Studs Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1085 rpm
Current0.50 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.20 LB
Country Of originMexico
Output HP1/100 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.07 in
Shaft Diameter0.250 in
Shaft Extension1 in
CEN
Starting MethodAcross The Line
