category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D1109
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.2
width:
3.38

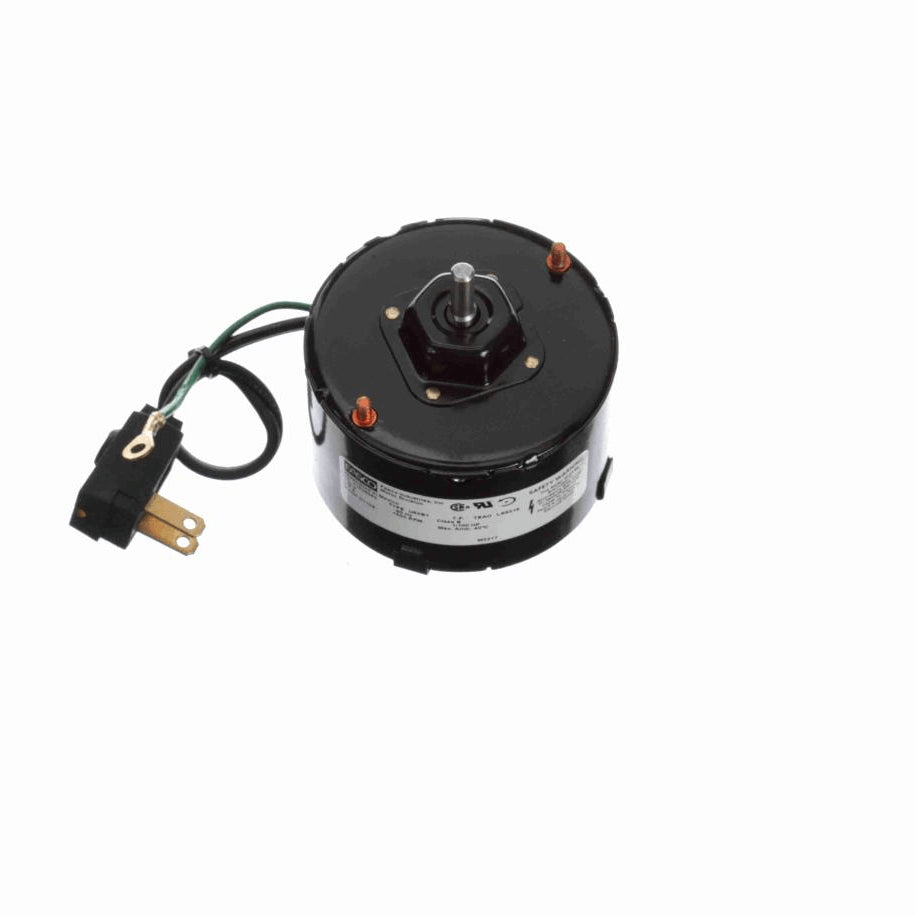

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 7" Leads with Molded Plug
- Exented Studs Shaft End and Lead End, Hex Mounting Hubs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.20 LB
Country Of originMexico
Output HP1/100 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.85 in
Shaft Diameter0.313 in
Shaft Extension1.29 in
CEN
Starting MethodAcross The Line
