category:
Electric Motors
height:
10
length:
4.38
manufacturer:
Century
mpn:
D377
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.4
width:
4.38

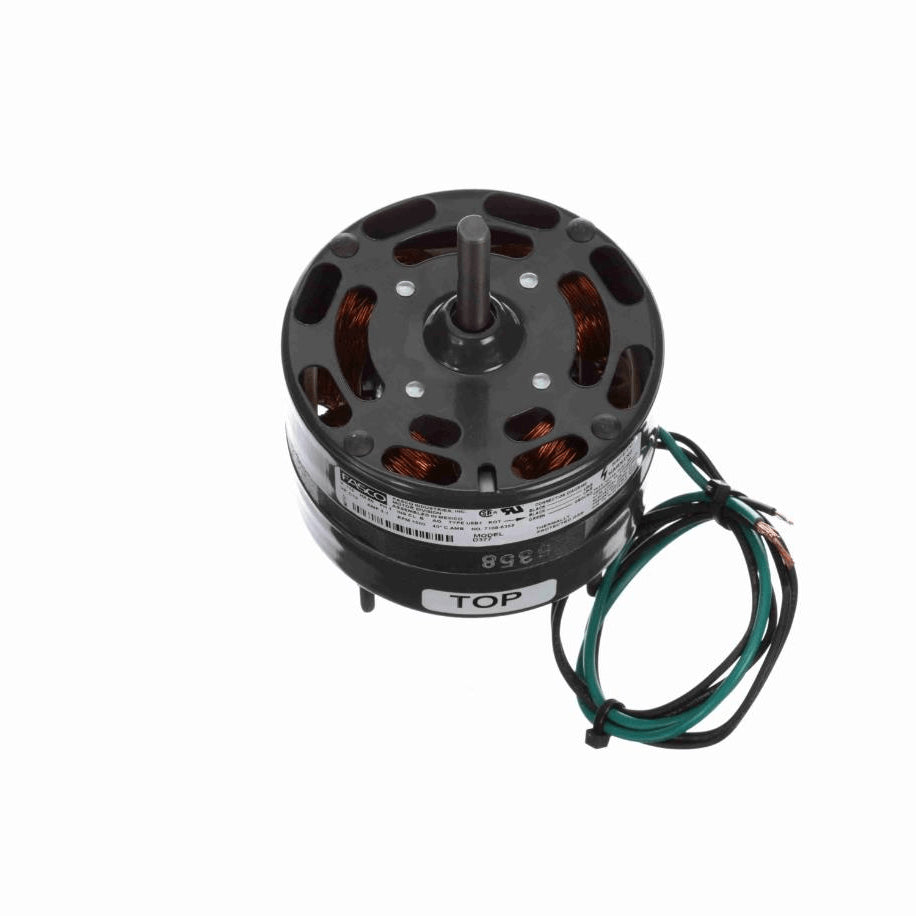

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 20" Leads
- Extended Studs Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current3.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.40 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2.00 in
CEN
Starting MethodAcross The Line
