category:
Electric Motors
height:
8.38
length:
8.13
manufacturer:
Century
mpn:
D0746
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.31
width:
8.13

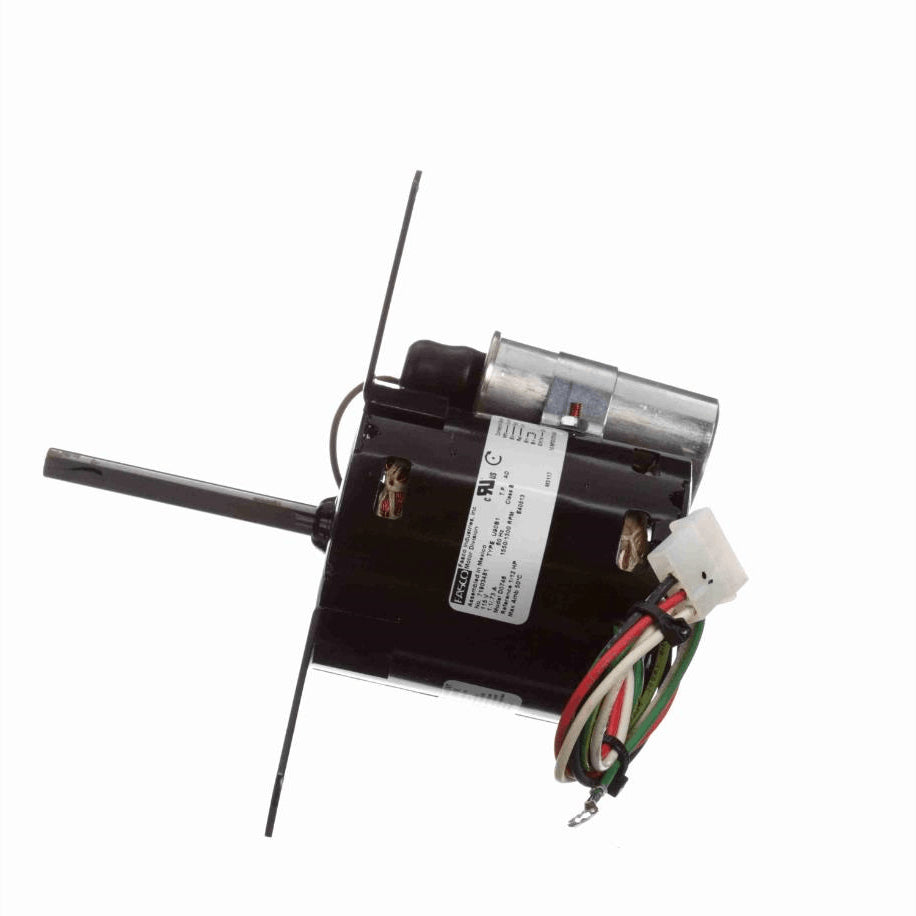

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 12" Leads with Plug Assembly
- Lug Mounting
Additional Information
Thermal ProtectionThermally Protected
Speed1550/1300 rpm
Current1.10/0.73 A
Number of Speeds2
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAN
Weight5.31 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.93 in
Shaft Diameter0.375 in
Shaft Extension3.45 in
CEN
Starting MethodAcross The Line
