category:
Electric Motors
height:
8.5
length:
6.81
manufacturer:
Century
mpn:
D1161
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.6
width:
6.81

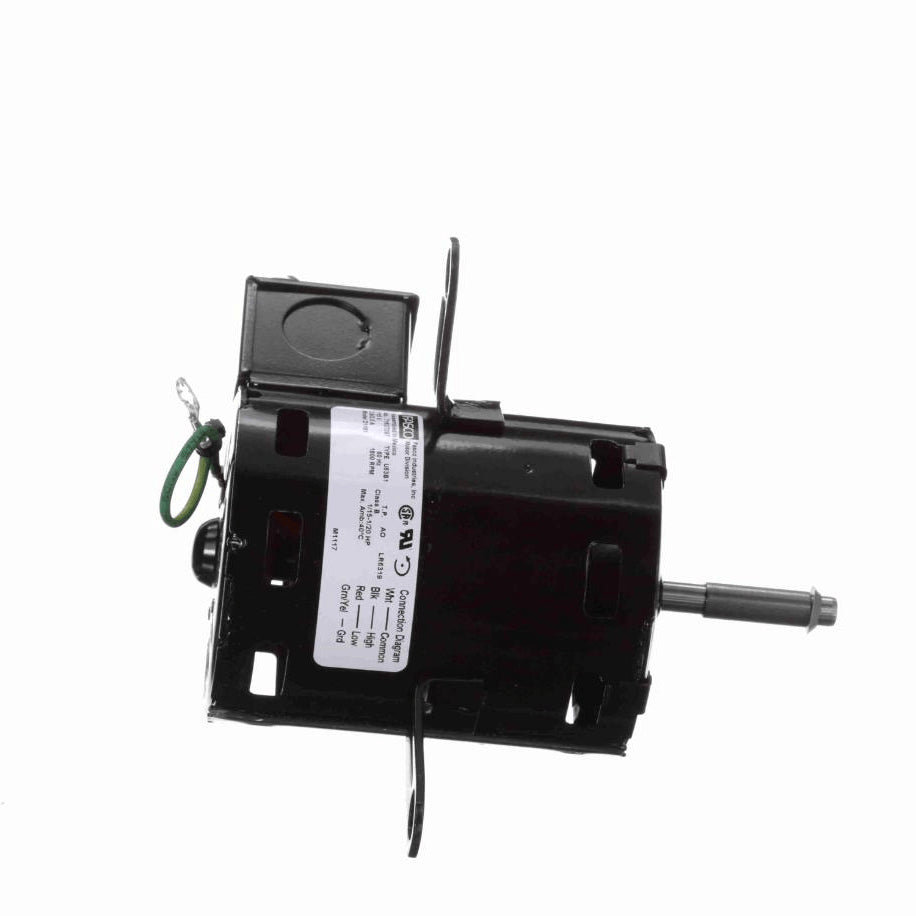

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- Conduit Box
- Lug Mount
Additional Information
Thermal ProtectionThermally Protected
Speed1600 rpm
Current2.90/2.20 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.60 LB
Country Of originMexico
Output HP1/15-1/25 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.02 in
Shaft Diameter0.313 in
Shaft Extension2 in
CEN
Starting MethodAcross The Line
