category:
Electric Motors
height:
27.5
length:
6.5
manufacturer:
Century
mpn:
D1090
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.25

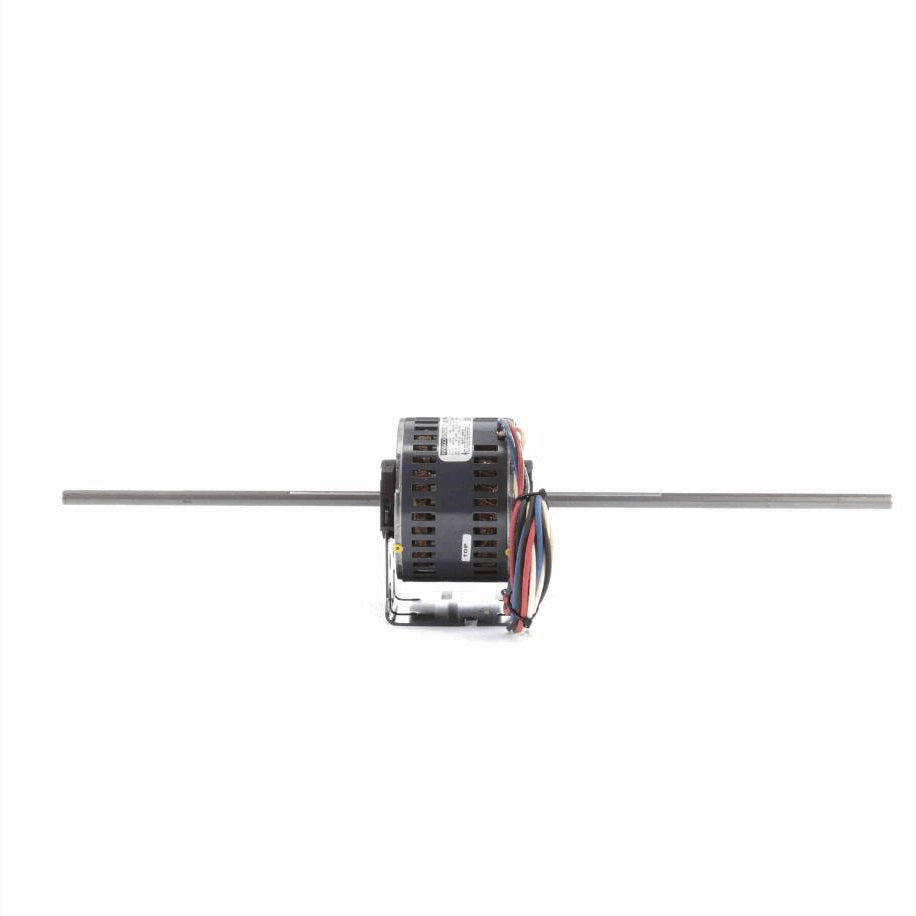

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 44" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current0.80 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.13 in
Shaft Diameter0.500 in
Shaft Extension10.5 in
CEN
Starting MethodAcross The Line
