category:
Electric Motors
height:
8
length:
5.75
manufacturer:
Century
mpn:
D1170
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
4.38

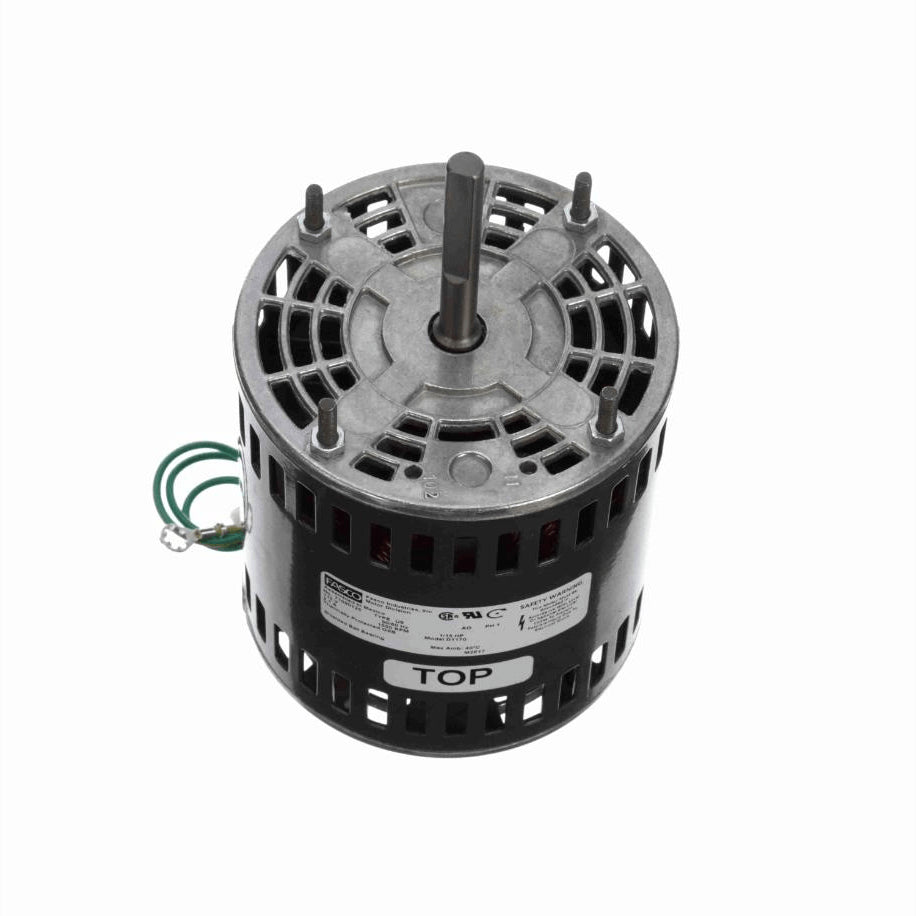

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- Conduit Box, 13" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current2.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight7.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.38 in
Shaft Diameter0.375 in
Shaft Extension2.50 in
CEN
Starting MethodAcross The Line
