category:
Electric Motors
height:
10
length:
4.38
manufacturer:
Century
mpn:
D1012
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.2
width:
4.38

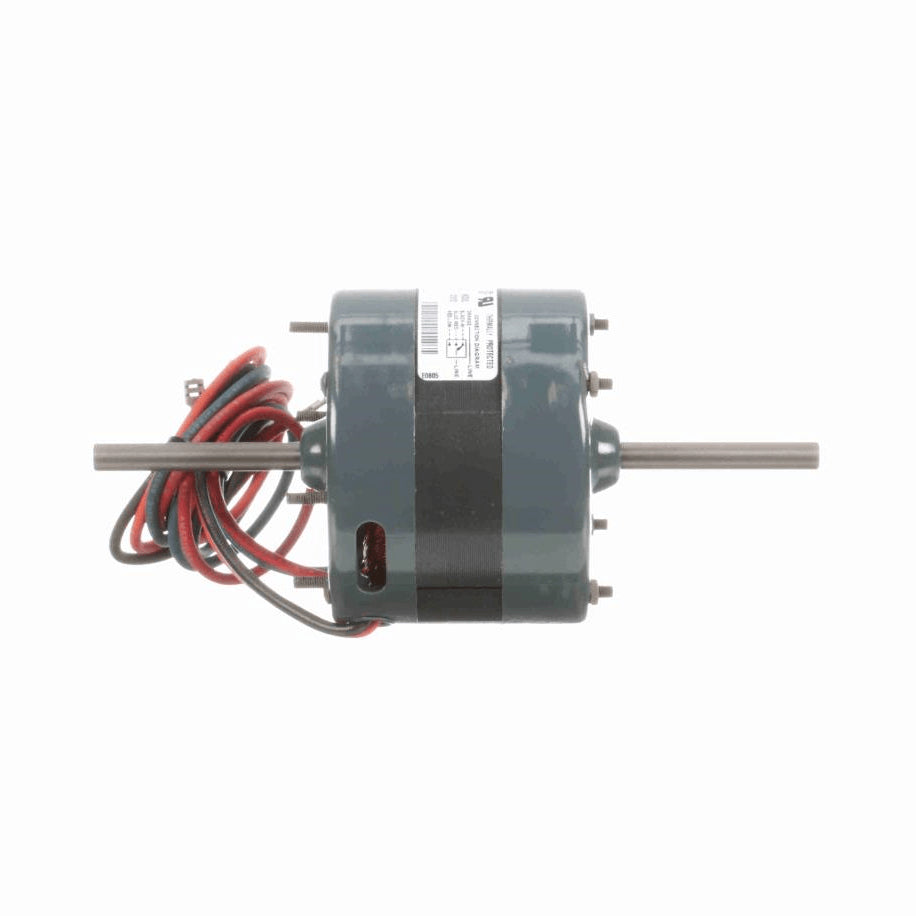

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Lead End End-Frame, Enclosed Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 26" Leads with Spade Terminal
- Extended Studs Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current2.3 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.20 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureSemi Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.40 in
Shaft Diameter0.375 in
Shaft Extension3.0X.375X3.0 in
CEN
Starting MethodAcross The Line
