category:
Electric Motors
height:
4.25
length:
11.38
manufacturer:
Century
mpn:
D459
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.4
width:
6.5

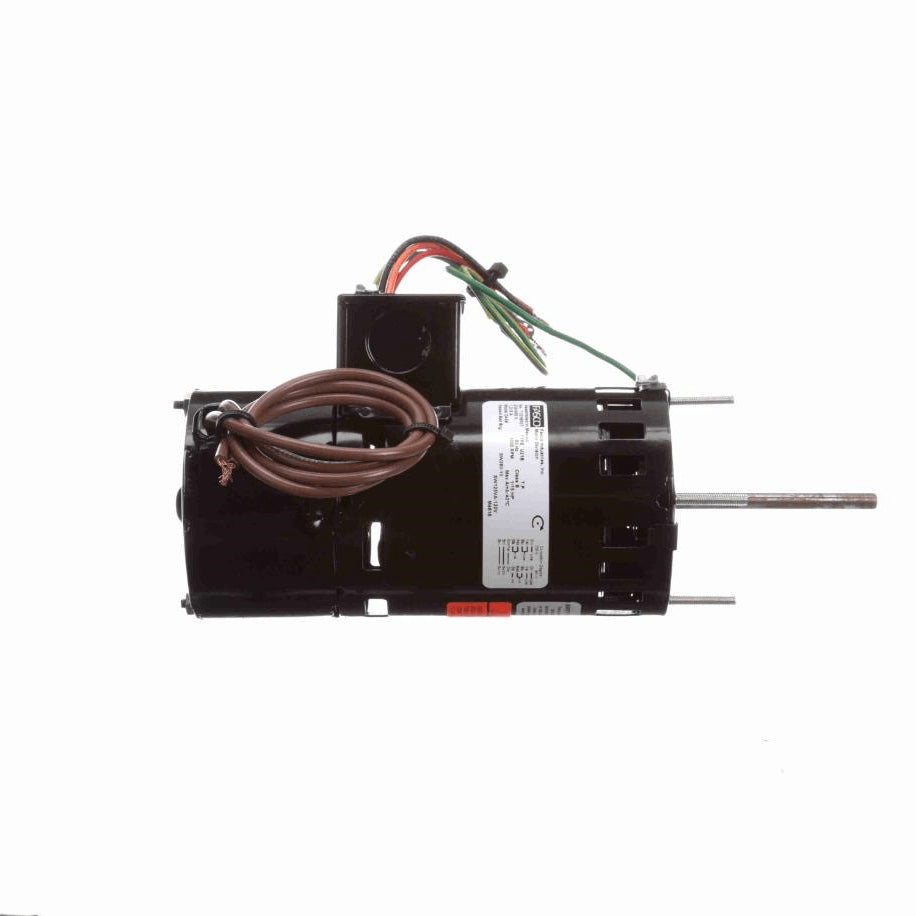

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- Counduit Box, 32" Switch Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.2/.6 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight5.40 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.52 in
Shaft Diameter0.250 in
Shaft Extension3 in
CEN
Starting MethodAcross The Line
