category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D0975
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.3
width:
5.63

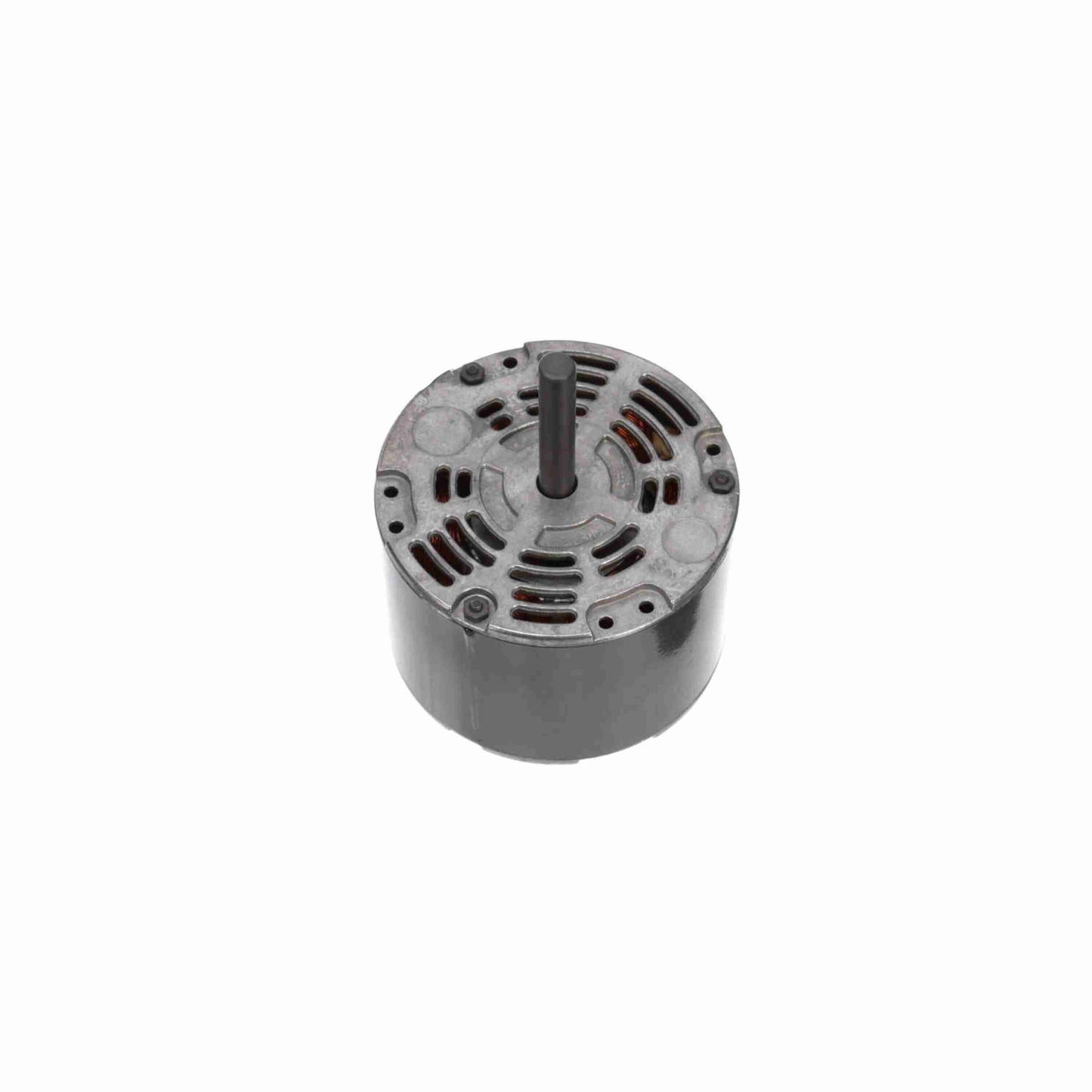

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Shaft with Flat
- 16" Leads with Molded Plug
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1045 rpm
Current1.13 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.30 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.30 in
Shaft Diameter0.375 in
Shaft Extension2.25 in
CEN
Starting MethodAcross The Line
