category:
Electric Motors
height:
18
length:
11
manufacturer:
Century
mpn:
D1074
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10.85
width:
11

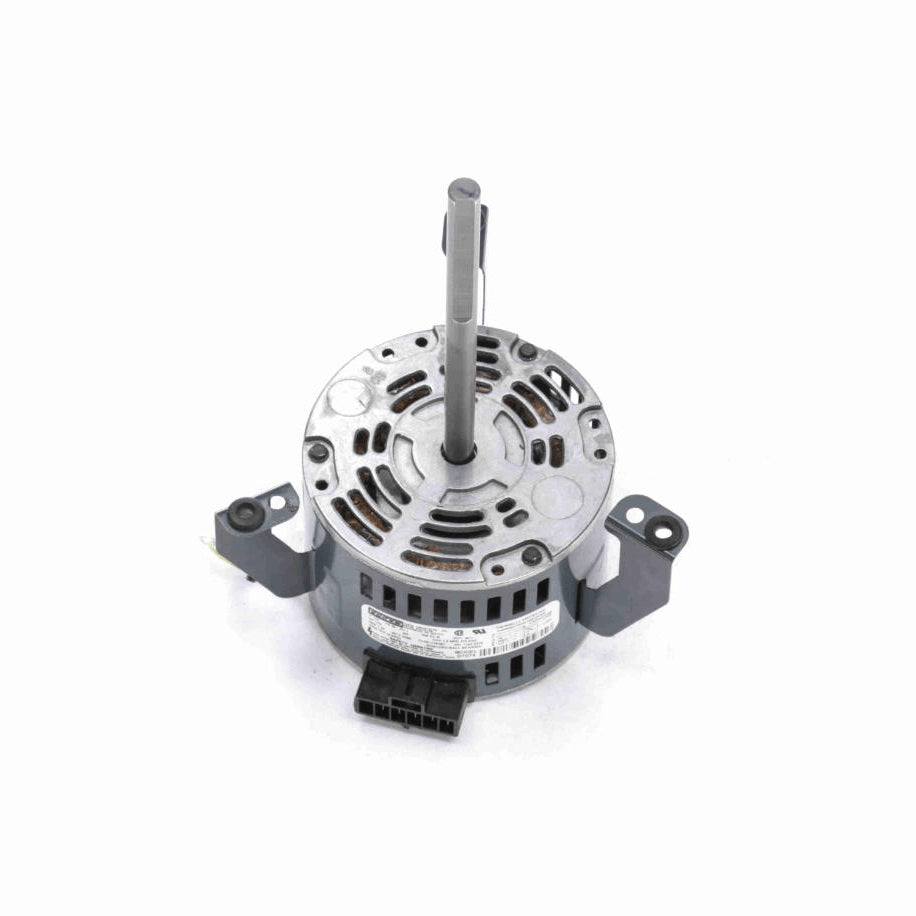

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.25 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.85 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.38 in
Shaft Diameter0.500 in
Shaft Extension7 in
CEN
Starting MethodAcross The Line
