Product details
availability: In stock
category: Electric Motors
height: 10
length: 4.38
manufacturer: Century
mpn: D1061
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 8.8
width: 4.38

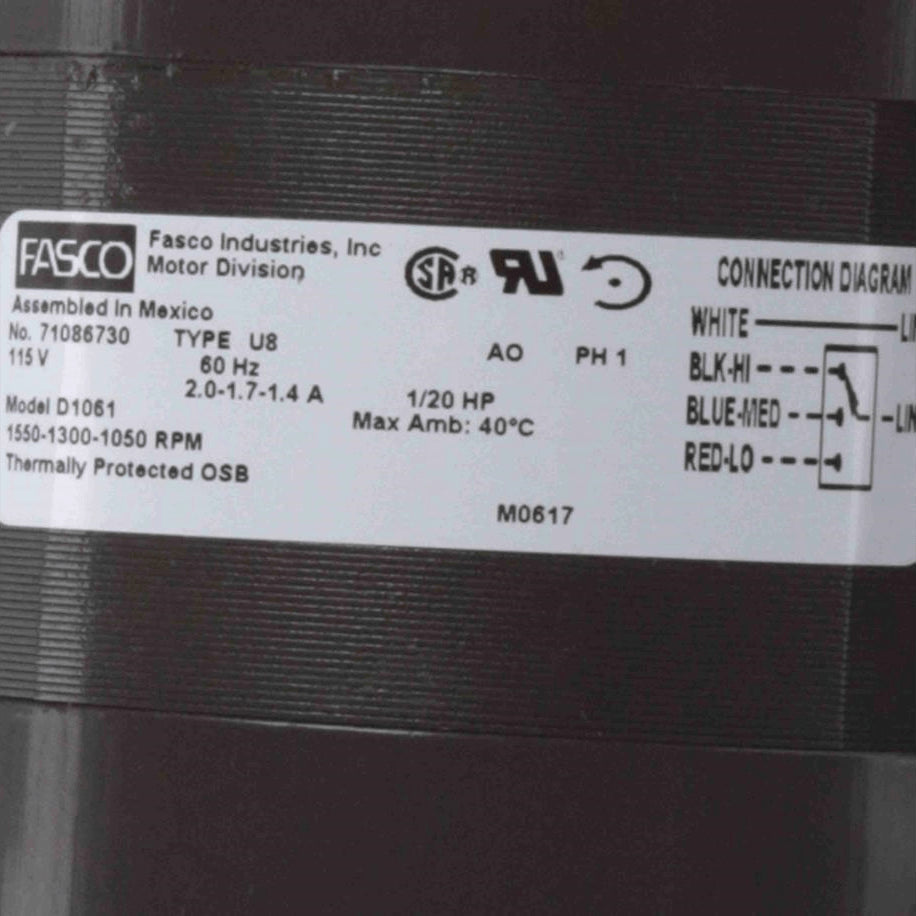

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 16" Leads
- Extended Studs Shaft End, Hex Mounting Hub Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550-1300-1050 rpm
Current2.0-1.7-1.4 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.80 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4/6
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.75 in
CEN
Starting MethodAcross The Line
