category:
Electric Motors
height:
5
length:
8
manufacturer:
Century
mpn:
D1143
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.45
width:
5.63

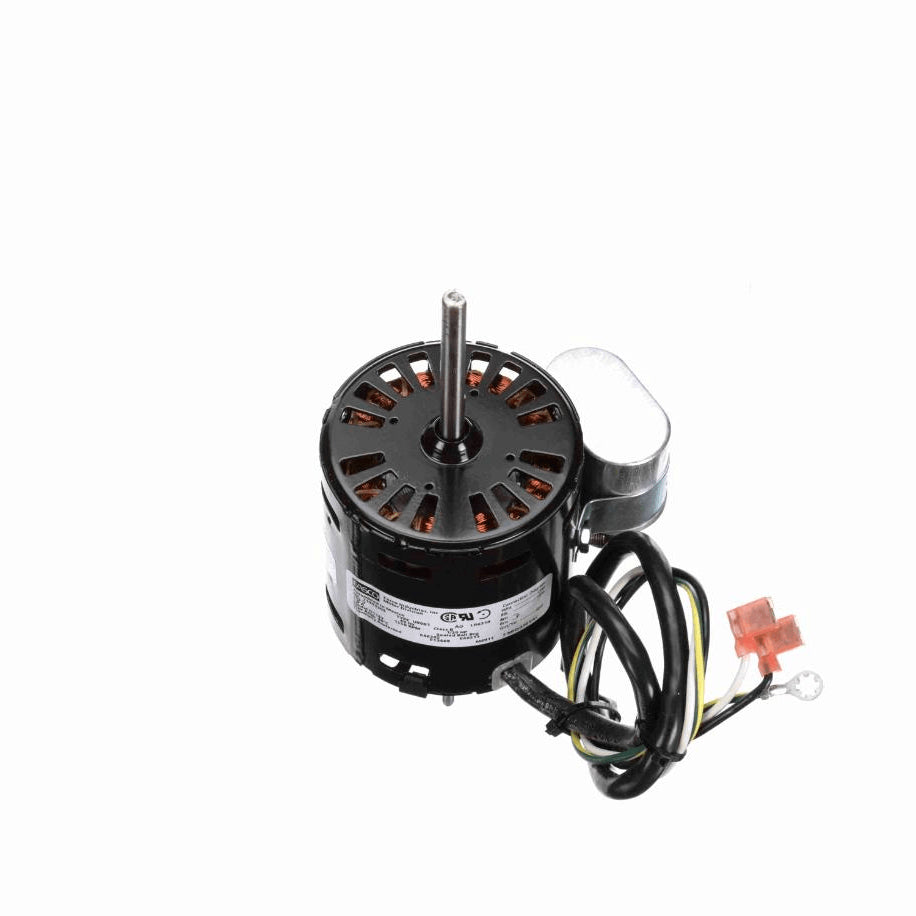

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current0.90 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.45 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.32 in
Shaft Diameter0.312 in
Shaft Extension2.84 in
CEN
Starting MethodAcross The Line
