category:
Electric Motors
height:
4.56
length:
11
manufacturer:
Century
mpn:
D1245
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.8
width:
5.5

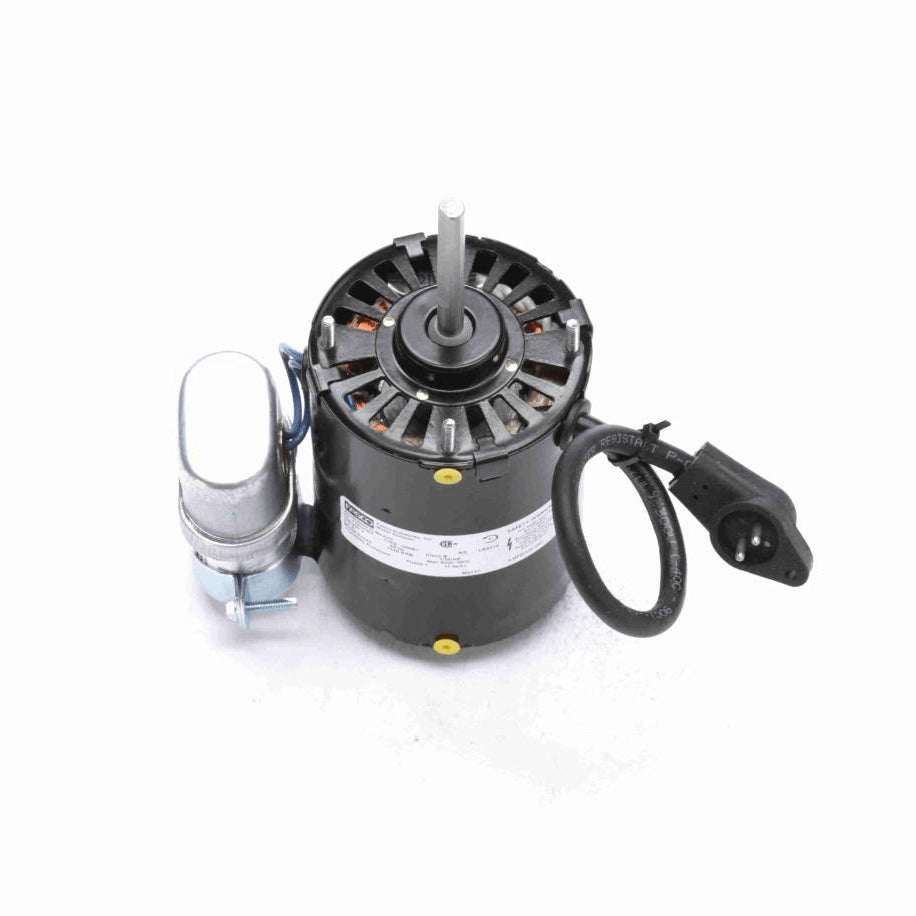

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 11" Leads with Molded Plug
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current0.30 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight4.80 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.95 in
Shaft Diameter0.313 in
Shaft Extension2.82 in
CEN
Starting MethodAcross The Line
