category:
Electric Motors
height:
4.56
length:
11
manufacturer:
Century
mpn:
D1144
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.2
width:
5.5

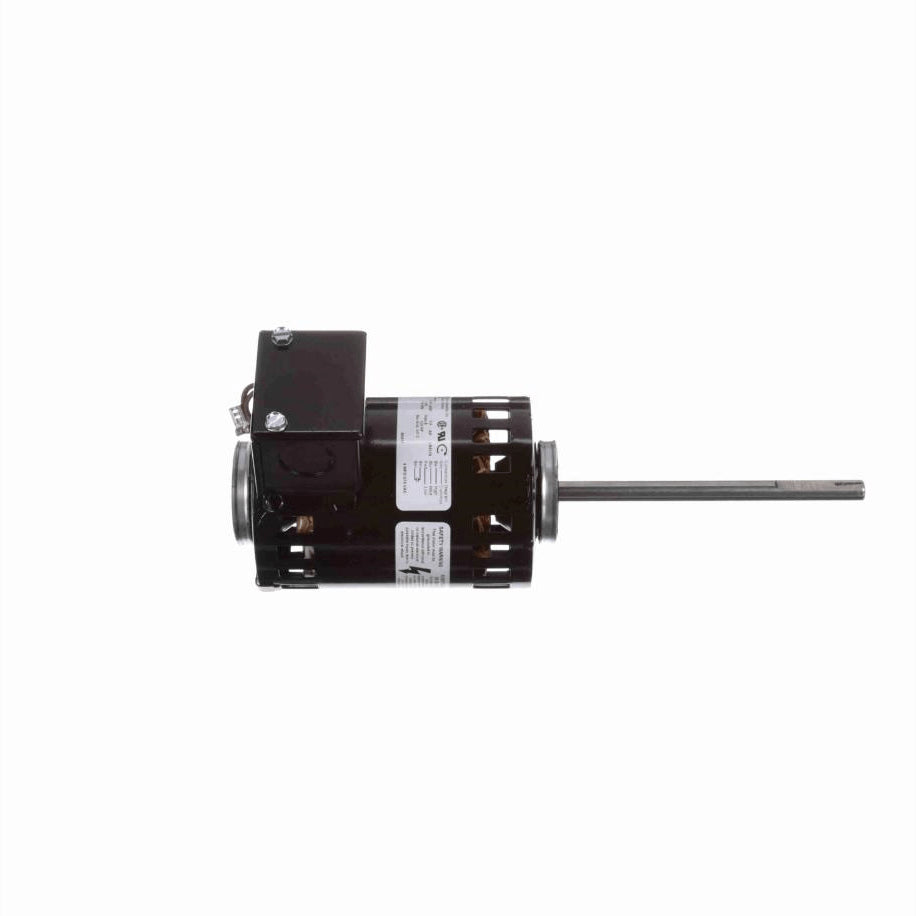

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 8" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionThermally Protected
Speed1200 rpm
Current1.10 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.20 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.51 in
Shaft Diameter0.375 in
Shaft Extension5.68 in
CEN
Starting MethodAcross The Line
