category:
Electric Motors
height:
16
length:
8
manufacturer:
Century
mpn:
D2851
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
24.4
width:
8

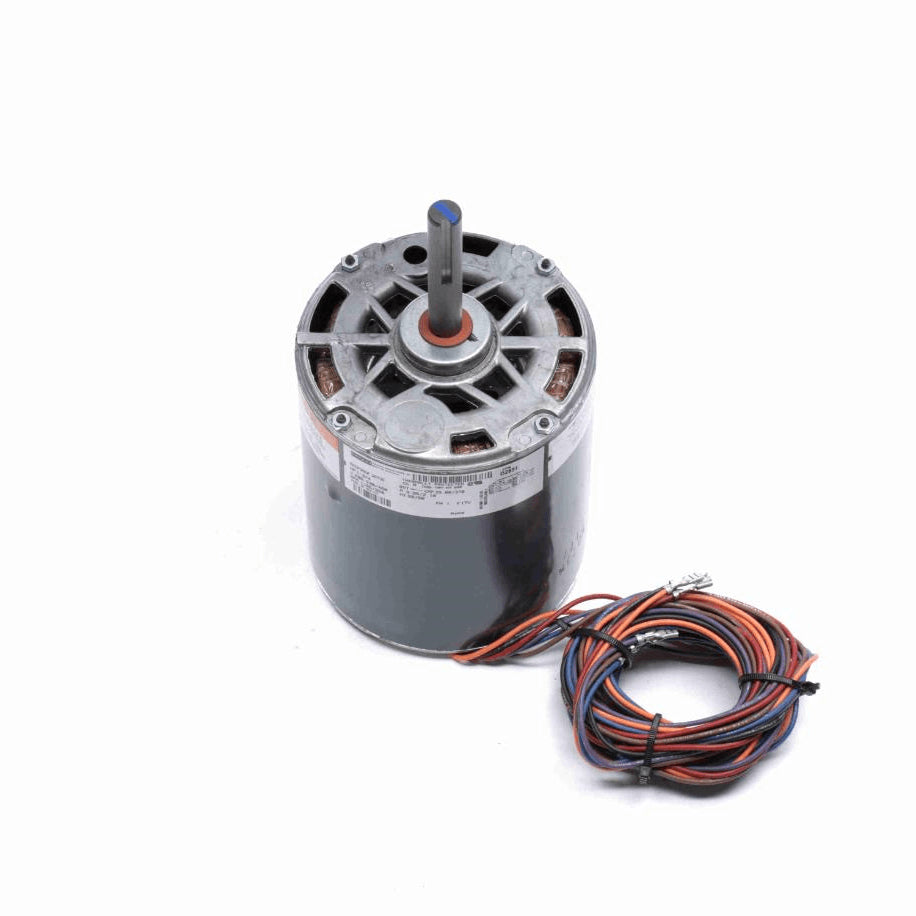

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Keyway
- 97" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1125/950 rpm
Current3.95/2.10 A
Number of Speeds1
Ambient Temperature65 °C
ULRecognized
Insulation ClassB
CSAY
Weight24.40 LB
Country Of originMexico
Output HP1-3/4 Hp
Output KW0.75 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingLug
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length6.07 in
Shaft Diameter0.620 in
Shaft Extension3.25 in
CEN
