category:
Electric Motors
height:
22
length:
5.13
manufacturer:
Century
mpn:
D1092
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9.6
width:
5.13

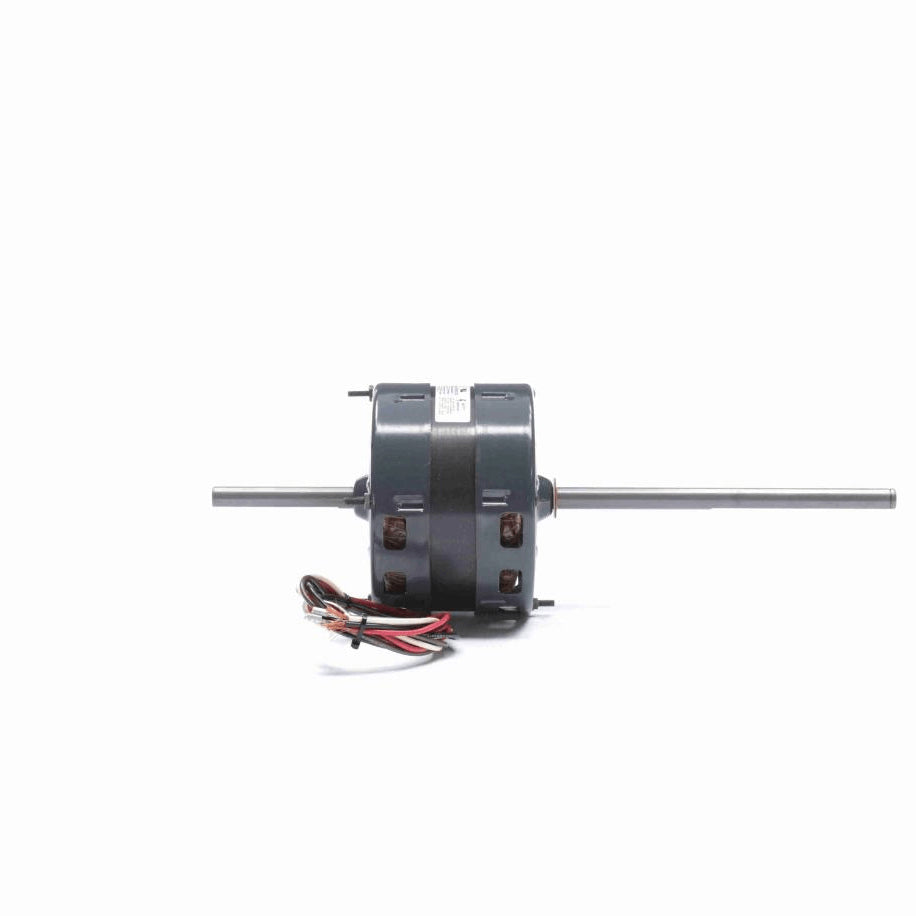

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 23" Leads
- (4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1675/1080 rpm
Current3.4 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.60 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension7.92 in
CEN
Starting MethodAcross The Line
